Inline drum spill pallets are a great space saver for drum storage. Line all of your drums along the wall in your facility. If you have a variety of chemicals you have to access frequently then this is the storage solution.
The drum spill pallets will only stick out a little over 26 inches leaving more open floor space in the center of your building. An optional ramp and the low profile of the pallets makes it easier to safely load and unload drums.
Besides our standard stand alone 1, 2 and 4 drum models (A1633INE, A1632INE & A1647INE) we have modular models A2360INU, A2361INU & A2333INU which can be connected together allowing spills to flow from one deck to another. They also come with a bladder attachment for more sump capacity. These units are pre-drilled and can be assembled without tools. The bulkhead fittings lock the connected modules together. These inline pallets come in 3, 4 and 5 drum configurations but you can customize them to any configuration you need. A video of this product can be viewed here.
Bladders should not be reused. Replacement bladders can be purchased for models A2360INU, A2361INU & A2333INU. Fittings for attaching the pallets together and t-strips are included in the cost of these models. A bladder will roll out 65.5 inches away from the deck and the width is approximately 66 inches if completely unfurled.
All of the pallets on this page are made with polyethylene, the pallets are very durable and chemical resistant. The light poly grates can be easily removed for cleaning. Meets EPA requirements for secondary spill containment of hazardous materials. The inline drum spill pallets are available in many options to handle any number of drums you may have.
If you are going to be dispensing from the drums be sure to use our drum top pads to protect the walls of your location from any fluids. The spill pallets have plenty of sump capacity to handle most leaks.
Check to see if the chemicals at your facility have compatibility with our pallets. See our High Density Polyethylene Chemical Resistance Guide. If you need spill pallets for aggressive chemicals you keep at your facility, these types of containment pallets can be found here.
Always check with local regulators before purchasing but these products can help you comply with SPCC, UFC and regulation 40 CFR 264.175. For an overview of all of the regulations see the Federal Regulatory Compliance Summaries here.
Patented removable poly grating
Dimensions, sump capacity, load capacity and weights for each pallet noted below in Description.
Optional poly pallet ramp for 2 and 4 drum inline spill pallets
High Density Polyethylene Chemical Resistance Guide
40 CFR 264.175
See Federal Regulatory Compliance Summaries here.
||1- Drum Inline Spill Pallet Dimensions - 26.25"x26"x6.5"
Sump Capacity -12 gallons No Fork Pocket/ No Drain Plug Load Capacity - 2000 lbs Weight each - 16 lbs

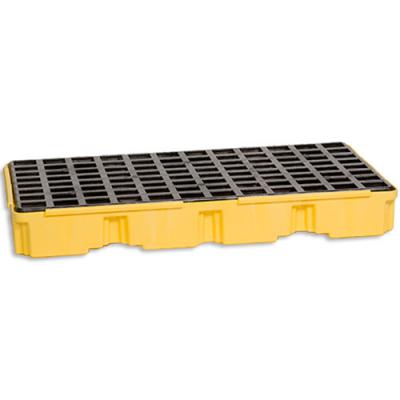

||2-DRUM Inline Spill Pallet Dimensions - 26.25"x51.5"x6.5"
Sump Capacity -30 gallons No Fork Pocket/ No Drain Plug Load Capacity - 5000 lbs Weight each - 32 lbs
||4-DRUM Inline Spill Pallet Dimensions - 103.5"x26.25"x6.5"
Sump Capacity -66 gallons No Fork Pocket/ No Drain Plug Load Capacity - 8000 lbs Weight each - 64 lbs
||Pallet Ramp for Inline Spill Pallets Dimensions - 45.5"x32"x8"
Models A1632INE, A1633INE & A1647INE
Load Capacity - 1500 lbs Weight each - 32 lbs
||3-DRUM Inline Spill Pallet - Connectable/Larger Sump/Bladder, Dimensions - 77-7/8"x25-7/8"x5-3/4"H, Sump Capacity -99 gallons, No Fork Pocket/ No Drain Plug, Load Capacity Distributed - 4500 lbs, Weight each - 67 lbs, Includes: 1-one drum and 1--two drum spill deck, 1-bladder attachment, 1-bulkhead fitting, 1-T-strip, See Product Video Here||$487.97
||4-DRUM Inline Spill Pallet - Connectable/Larger Sump/Bladder, Dimensions - 104"x25-7/8"x5-3/4"H, Sump Capacity -110 gallons, No Fork Pocket/ No Drain Plug, Load Capacity Distributed - 6000 lbs, Weight each - 84 lbs, Includes: 2 - two drum spill decks, 1-bladder attachment, 1-bulkhead fitting, 1-T-strip, See Product Video Here||$588.97
||5-DRUM Inline Spill Pallet - Connectable/Larger Sump/Bladder, Dimensions - 129-7/8"x25-7/8"x5-3/4"H, Sump Capacity -121 gallons, No Fork Pocket/ No Drain Plug, Load Capacity Distributed - 7500 lbs, Weight each - 107 lbs, Includes: 1-one drum and 2-two drum spill decks, 1-bladder attachment, 2-bulkhead fitting, 2-T-strip, See Product Video Here||749.97
||Loading Ramp for Models A2360INU, A2361INU & A2333INU, Dimensions - 24"x32"x5-3/4"H, Weight each - 18 lbs, See Product Video Here||$162.97
||Replacement Bladder - Bladder Only, For Items A2360INU, A2361INU & A2333INU, Fits into Item 2317 below, Color Yellow - Housing not included, Weight: 2 lbs||66.97
||Replacement Bladder with Housing, For Items A2360INU, A2361INU & A2333INU, Color: Yellow, Weight: 5 lbs||131.97
