Low Profile Modular IBC Tote Pallets

Heavy-Duty IBC Tote Containment Pallets for Indoor or Outdoor Use

A1125U IBC Tote Containment (modular 2 unit/side tanks)
A1125U IBC Tote Containment (modular 2 unit/side tanks)
Next Prev
A1117U Extra Bulkhead Fittings (included in units) A1125U IBC Tote Containment (modular 2 unit/side tanks)A1125U IBC Spill Pallet Modular (2 unit with back expansion tanks) A1126U Tote Containment System (3 unit corner tote IBC system)A1126U 3 Unit Tote Containment (expansion tanks on ends) A1127U 4 Tote IBC Containment (4 IBC storage set-up) A1128U 5 Unit Tote Containment Pallet (5 containers IBC tote containment)Image Shows Spill Containment Flow (flow from pallet to pallet or to tanks) A1165U Outdoors Spill Pallet (2 unit covered spill pallet) A1166U Outdoors Tote Containment (3 tote containers covered spill pallet) A1167U IBC Modular Ourdoors (set-up 4 IBC modular outdoor) A1168U 5 Tote Outdoor Spill Pallet (5 tote modular containment pallet) A1117U Extra Bulkhead Fittings A1118U Required Assembly Kit (kit for connecting pallets & tanks) A1124U Expansion Tank Only (shows expansion tank assembly) A9630U Spill Pallet Only (spill pallet used in modular units)
  Made In The USA

Quick Overview

  • Heavy duty polyethylene material
  • Systems will last for years
  • Low profile
  • Easy loading and access
  • Resistant to most acids, oils and solvents
  • Each pallet supports 9000 lb. UDL
  • Large deck accommodates most IBC containers
  • Heavy duty construction
  • Some assembly required
  • Complete instructions included
  • Pallets market for simple installation of fittings
  • Clean with soap and water
  • Will not rust or corrode
  • Grates are removable for cleaning
  • Grates are light weight yet strong
  • Forklift pockets for moving
  • Sump capacities comply with regulations
  • EPA and SPCC compliant
  • Made in USA

From $2,352.97

Product Information

Excellent Usability. Pallets Only 8.75 Inches High

Most IBC tote containment pallets are 20 inches or higher so the tubs can meet container storage regulations in case of spillage or leakage. This means IBC oil/chemical totes or drums are set up high. If you mix product in totes you cannot reach the top without removing it. Drums also set too high if you dispense from them. Learn more about how to choose the right spill containment kit.

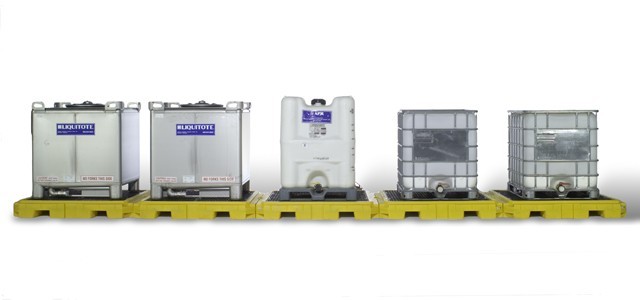

Store IBC Totes and 55 Gallon Drums Together and Comply with Regulations With this new, patented containment system you can store either IBC oil/chemical totes or 55/30 gallon drums on the same pallet system knowing you can comply with containment regulations for both. With the tote containment pallets being only 8.75 inches high you can dispense from the bottom of the totes and at the same time reach the top of the tote. You can also safely dispense from drums because the oil/chemical totes are not so high in the air.

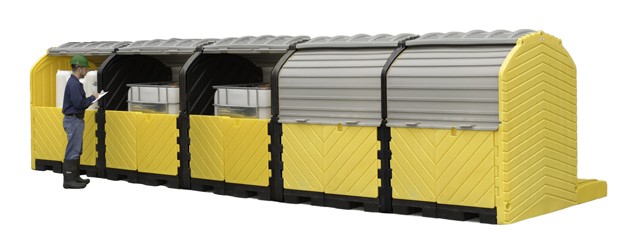

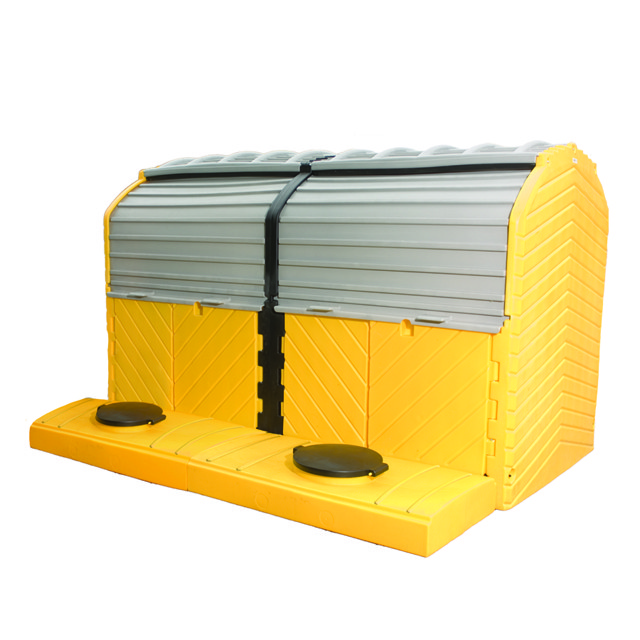

Modular Systems Available for Indoor or Outdoor Storage

The indoors modular system allows you to configure your components for whatever works best for your needs. The outdoor units have roll up and swing out doors for easy access. Contents is protected from the elements and are lockable.

How the Tote Spill Containment System Works

In addition to the heavy duty tote containment pallet the IBC sets on, each set-up comes with expansion tanks. The containment pallets are connected to allow flow from one to the other. In addition, the expansion tanks are connected to the pallets for additional capacity. This is how you are able to have low profile pallets yet still have the capacity to comply with regulations.

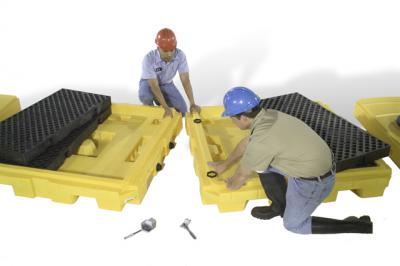

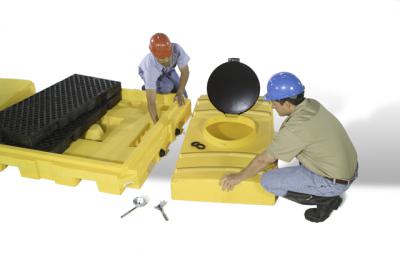

Easily Connect Pallets and Expansion Tanks

Each oil/chemical tote pallet has a 75 gallon capacity and each expansion tank has a 65 gallon capacity. They are connected with flow through bulkhead fittings which are included. Drill points on the sidewalls are clearly marked and detailed assembly instructions are included.

Complying with Regulations No Problem

Weather you use the indoor system or the outdoor storage pallets you are meeting all SPCC, EPA NPDES and BMP regulations. The containment sumps meet EPA Container Storage Regulations.

Made with Polyethylene Material

The platforms, grates, sides and doors of the IBC tote containment pallet units are made of heavy duty, 100% polyethylene. Polyethylene material is strong and resistant to most chemicals. Rust or corrosion is never a problem. The oil/chemical totes are easy to clean with soap and water after the leaked/spilled chemicals.

Components Included with Each System (Same for Indoor or Outdoor Units)

Description # Gallons Capacity # of Pallets # of Expansion Tanks
2 -Tank Model 280 2 2
3 -Tank Model 355 3 2
4 -Tank Model 365 4 1
5 -Tank Model 375 5 0

Bulkhead connectors included. Special tool kit (A1118U) NOT included - listed below.

Details of each item are noted in the description below. Feel free to contact us with any questions.

All IBC tote containment pallets ship LTL. Some assembly required. After ordering we will contact you for your approval of the shipping costs before we ship your order. Please feel free to contact us at for Bulk Prices, Formal Quotes and Discounts at (800)869-9633 or by email



Technical Information



Compliance Information



warningWARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

The above warning only applies to the following item listed below: A1118U.

Pricing and Order

Item Description Our Price Quantity
A1125U
IBC Indoor Modular Spill Pallet, 2-Tote Model, Polyethylene, No Drain
A1125U
IBC Indoor Modular Spill Pallet, 2-Tote Model, Polyethylene, No Drain

IBC Indoor Modular Spill Pallet - Two IBC/Tote Model - Polyethylene - Includes 2 pallets (62"x62"x8.75") and 2 expansion tanks (61"x31"x12.5") Overall Dimensions - 186"x62"x8.75" - Spill Capacity -280 gallons, Pallets 75 gallons each and expansion tank 65 gallons each. Yes Fork Pocket/ No Drain Plug, Load Capacity - 9000 lb. (UDL) Weight - 310 lb. Requires Assembly Kit, Item A1118U below.

$2,352.97
Others Charge
$2,628.00
$2,352.97
Others Charge
$2,628.00
Quantity
A1126U
IBC Indoor Modular Spill Pallet, 3-Tote Model, Polyethylene, No Drain
A1126U
IBC Indoor Modular Spill Pallet, 3-Tote Model, Polyethylene, No Drain

IBC Indoor Modular Spill Pallet - Three IBC/Tote Model - Polyethylene - Includes 3 pallets (62"x62"x8.75") and 2 expansion tanks (61"x31"x12.5") Overall Dimensions - 248"x62"x8.75" - Spill Capacity -355 gallons, Pallets 75 gallons each and expansion tank 65 gallons each. Yes Fork Pocket/ No Drain Plug, Load Capacity - 9000 lb. (UDL) Weight - 435 lb.  Requires Assembly Kit, Item A1118U below.

$3,120.97
Others Charge
$3,485.00
$3,120.97
Others Charge
$3,485.00
Quantity
A1127U
IBC Indoor Modular Spill Pallet, 4-Tote Model, Polyethylene, No Drain
A1127U
IBC Indoor Modular Spill Pallet, 4-Tote Model, Polyethylene, No Drain

IBC Indoor Modular Spill Pallet - Four IBC/Tote Model - Polyethylene - Includes 4 pallets (62"x62"x8.75") and 1 expansion tanks (61"x31"x12.5") Overall Dimensions - 279"x62"x8.75" - Spill Capacity -365 gallons, Pallets 75 gallons each and expansion tank 65 gallons each. Yes Fork Pocket/ No Drain Plug, Load Capacity - 9000 lb. (UDL) Weight - 531 lb.  Requires Assembly Kit, Item A1118U below.

$3,447.97
Others Charge
$3,852.00
$3,447.97
Others Charge
$3,852.00
Quantity
A1128U
IBC Indoor Modular Spill Pallet, 5-Tote Model, Polyethylene
A1128U
IBC Indoor Modular Spill Pallet, 5-Tote Model, Polyethylene

IBC Indoor Modular Spill Pallet - Five IBC/Tote Model - Polyethylene - Includes 5 pallets (62"x62"x8.75") and 0 expansion tanks (61"x31"x12.5") Overall Dimensions - 248"x62"x8.75" - Spill Capacity -375 gallons, Pallets 75 gallons each and expansion tank 65 gallons each. Yes Fork Pocket/ No Drain Plug, Load Capacity - 9000 lb. (UDL) Weight - 625 lb. Requires Assembly Kit, Item A1118U below.

$3,770.97
Others Charge
$4,212.00
$3,770.97
Others Charge
$4,212.00
Quantity
A1165U
IBC Outdoor Modular Spill Pallet, 2-Tote Model, Polyethylene
A1165U
IBC Outdoor Modular Spill Pallet, 2-Tote Model, Polyethylene
IBC Outdoor Modular Spill Pallet - Two IBC/Tote Model - Polyethylene - Includes 2 pallets (62"x62"x8.75") and 2 expansion tanks (61"x31"x12.5") Overall Dimensions - 126"x93"x79" - Spill Capacity -280 gallons, Pallets 75 gallons each and expansion tank 65 gallons each. Yes Fork Pocket/ No Drain Plug, Load Capacity - 9000 lb. (UDL) Weight - 1258 lb.
$5,867.97
Others Charge
$6,555.00
$5,867.97
Others Charge
$6,555.00
Quantity
A1166U
IBC Outdoor Modular Spill Pallet, 3-Tote Model, Polyethylene, No Drain
A1166U
IBC Outdoor Modular Spill Pallet, 3-Tote Model, Polyethylene, No Drain
IBC Outdoor Modular Spill Pallet - Three IBC/Tote Model - Polyethylene - Includes 3 pallets (62"x62"x8.75") and 2 expansion tanks (61"x31"x12.5") Overall Dimensions - 188"x93"x79" - Spill Capacity - 355 gallons, Pallets 75 gallons each and expansion tank 65 gallons each. Yes Fork Pocket/ No Drain Plug, Load Capacity - 9000 lb. (UDL) Weight - 1558 lb.
$8,307.97
Others Charge
$9,282.00
$8,307.97
Others Charge
$9,282.00
Quantity
A1167U
IBC Outdoor Modular Spill Pallet, 4-Tote Model, Polyethylene, No Drain
A1167U
IBC Outdoor Modular Spill Pallet, 4-Tote Model, Polyethylene, No Drain
IBC Outdoors Modular Spill Pallet - Four IBC/Tote Model - Polyethylene - Includes 4 pallets (62"x62"x8.75") and 1 expansion tanks (61"x31"x12.5") Overall Dimensions - 250"x93"x79" - Spill Capacity - 365 gallons, Pallets 75 gallons each and expansion tank 65 gallons each. Yes Fork Pocket/ No Drain Plug, Load Capacity - 9000 lb. (UDL) Weight - 1903 lb.
$10,366.97
Others Charge
$11,582.00
$10,366.97
Others Charge
$11,582.00
Quantity
A1168U
IBC Outdoor Modular Spill Pallet, 5-Tote Model, Polyethylene
A1168U
IBC Outdoor Modular Spill Pallet, 5-Tote Model, Polyethylene
IBC Outdoor Modular Spill Pallet - Five IBC/Tote Model - Polyethylene - Includes 5 pallets (62"x62"x8.75") and 0 expansion tanks (61"x31"x12.5") Overall Dimensions - 312"x62"x79" - Spill Capacity - 375 gallons, Pallets 75 gallons each and expansion tank 65 gallons each. Yes Fork Pocket/ No Drain Plug, Load Capacity - 9000 lb. (UDL) Weight - 2248 lb.
$12,423.97
Others Charge
$13,881.00
$12,423.97
Others Charge
$13,881.00
Quantity
A1117U
A1117U Extra Bulkhead Fittings
A1117U
A1117U Extra Bulkhead Fittings

1.25 Bulkhead Fitting (2) for Modular Spill Pallets. Dimensions: 3" x 3" x 3". Weight: 3 lb.

$54.97
Others Charge
$65.99
$54.97
Others Charge
$65.99
Quantity
A1118U
Required Assembly Kit for Modular Spill Pallets
A1118U
Required Assembly Kit for Modular Spill Pallets

Required Assembly Kit for Modular Spill Pallets.
Includes: hole saw, arbor and set of (2) tightening tools for assembling units. Weight: 2 lb. Bulkhead fittings included in above kits.

$130.97
Others Charge
$156.00
$130.97
Others Charge
$156.00
Quantity
A1124U
Expansion Tank Only for Modular Spill Pallets
A1124U
Expansion Tank Only for Modular Spill Pallets

Expansion Tank Only for Modular Spill Pallets.
Dimensions: 61"x31"x12.5". Material: Polyethylene. Spill capacity: 65 gallons. Weight: 30 lb.

$383.97
Others Charge
$432.00
$383.97
Others Charge
$432.00
Quantity
A9630U
Spill Pallet Only (for Modular Spill Pallets)
A9630U
Spill Pallet Only (for Modular Spill Pallets)

Spill Pallet Only for Modular Spill Pallets
Dimensions: 62"x62"x8.75". Material: Polyethylene. Spill capacity: 75 gallons. Load Capacity: 9000 lb. (UDL) Weight: 125 lb.

$732.97
Others Charge
$825.00
$732.97
Others Charge
$825.00
Quantity
