Containment Wall Spill Berm

Modular containment system with hard walls for long-term site use

modular spill containment wall
modular spill containment wall
Next Prev
modular spill containment wallcontainment wall system 1ft, 2ft, 3ft componentsspill containment wall module stacksmodular wall spill containment system assemblycontainment wall spill berm assembly
  Made In The USA

Quick Overview

  • Hard, modular wall sections let you configure any shape spill containment area
  • Spill containment berms with 1, 2 or 3-foot wall heights for versatile uses
  • Create semi-permanent containment areas for large capacity spill control
  • High-capacity spill containment systems with 3978 to 83582 gallon capacities
  • Suitable for use on concrete areas and parking lots to rocky soil or muddy soil
  • Heavy duty polyethylene liner creates an impermeable barrier to prevent spills
  • Meets SPCC and EPA Container Storage Regulation 40 CFR 264.175 requirements.

From $7,316.97

Product Information

containment wall system 1ft, 2ft, 3ft componentsThis Containment Wall Berm delivers a great solution for long-term, high-capacity spill containment. The hard, modular components quickly assemble onsite as a sturdy and effective containment berm. It features a strong polyethylene liner to capture leaks or spills from tanker trucks, frac tanks, large containers and more.

Available as a one, two, or three-foot high modular system, it provides superior containment capacity to other foam wall or collapsible wall berms. Wall and corner pieces easily to join together using a molded-in locking peg design.

Perfect for construction and oil industries, this modular spill containment berm system protects your job site from the risk of environmental pollution.

Heavy Duty Components

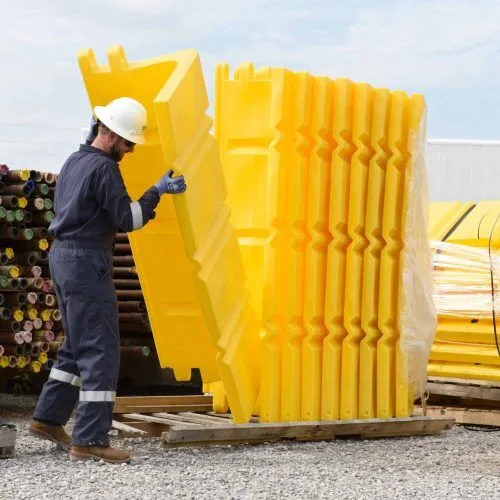

modular wall containment system component stackThe interlocking wall and corner modular components are made of durable, roto-molded yellow polyethylene. The pieces are hard-wearing, yet lightweight enough to move and install without lifting equipment. Built-in pegs lock each module together and allow you to construct different shape spill containment areas.

A black, textured LLDPE (linear low density polyethylene) membrane liner creates an impermeable barrier to capture leaks and spills. You may wish to use an optional berm accessory, like track mats or ground tarp, to provide additional protection and preserve the liner's lifespan.

These containment wall systems are available in one, two, or three foot heights with dimensions of 10' up to 68 feet wide. The hard wall sections measure approximately 10 feet (1'H), 8 feet (2'H) and 6 feet (3'H) long.

Because individual components overlap as they join, the overall containment area will be slightly smaller once you fully assemble the system. Additional components are available for purchase to expand your system's containment capacity, or, as replacements if necessary.

High-Capacity Spill Containment

modular wall spill containment systemOffering up to 83,582 gallon capacity, these modular systems provide superior containment in comparison to most other units on the market. The customizable berm system comes with corner and wall height sections of one, two, or three feet. Each component interlocks with built-in pegs to create a large, semi-permanent containment area.

Available in a range of sizes, these versatile units provide useful onsite secondary containment for frac tanks and other large equipment including vehicles and tanker trucks. Unlike many secondary containment berms, this containment wall system is not secured to the substrate. This makes them ideal for use on a variety of surfaces, including sand, rocky soil, muddy soil, frozen soil as well as concrete areas, and parking lots.

Quick & Easy to Install

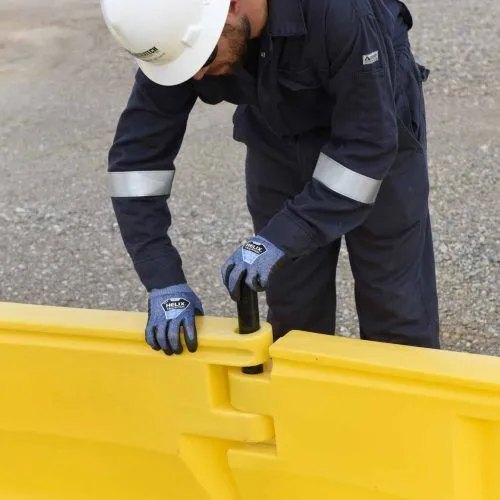

modular wall containment system liner clipsThe wall and corner sections of this rugged, modular spill containment berm feature a molded-in locking peg design for easy assembly. This allows you to quickly set up your containment wall system, without the need for any special tools or equipment.

Join the modular wall sections and corners to form almost any size and shape spill containment space. You may reconfigure your system with different dimensions for containment needs at future site locations.

A rugged liner insert wraps up and over the modular berm support structure walls. Use the 8-foot long clips to hold the liner in place by snapping them over the barrier sides. For a more tidy appearance, you may trim any excess liner away with a utility knife.

When drive-in access for vehicles or equipment is necessary, simply lift and unlock the wall components on one side of the unit. After maintenance or work operations are complete, the secondary containment system is easy to disassemble for re-use on future sites. Wall and corner components easily stack for easy storage or transportation.

Assembly Instructions

  1. Clear the containment site from debris or obstructions, including sharp sticks or stones.
  2. Place the liner on the ground and unfold (use an optional ground tarp beneath it, if desired).

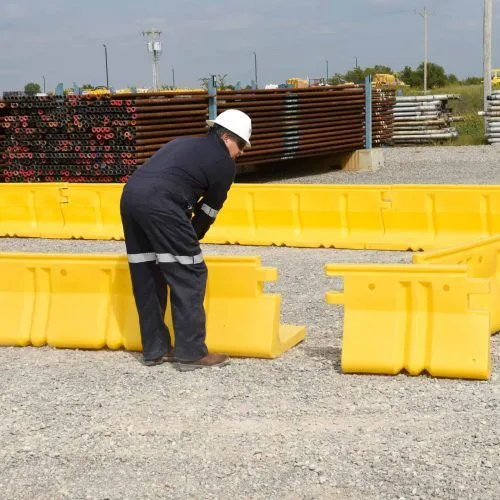

  3. Position and connect straight and corner section components, by inserting the molded-pegs into the holes of the adjoining piece to lock them together.
  4. Once you assemble three sides of the support structure, lay the liner over the walls.
  5. Snap clips over the liner and walls to secure the liner - press firmly or use a rubber mallet to fit.

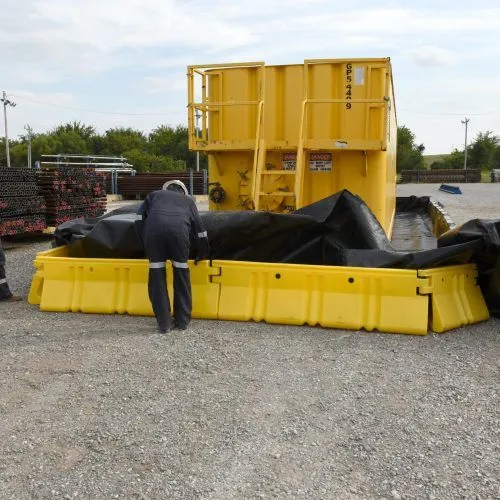

  6. Load vehicles, tanks, or other equipment before installing the final wall with remaining liner clips.

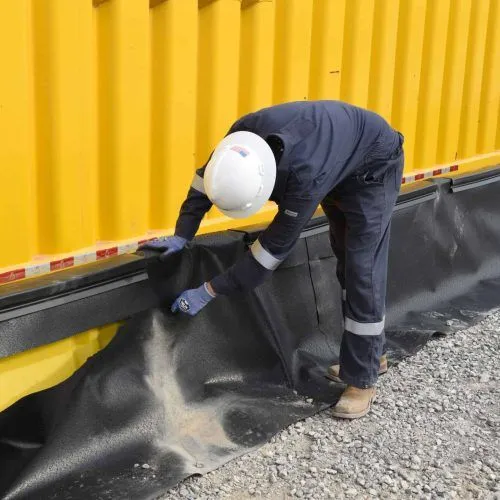

  7. If you wish, trim the liner edges to create a cleaner finish.

Protect Your Investment. Berm Protection Ground Tarps and Track Belts Available here

Technical Information

Interlocking, roto-molded yellow polyethylene wall and corner modular components. Black, 30 mil, co-extruded textured linear low density polyethylene (LLDPE) geomembrane liner (contains carbon black and ultraviolet inhibitors to ensure protection against UV degradation). Please see our Polyethylene Chemical Resistance Guide for more detailed information. Static use temperature: -70°F minimum to 180°F maximum. 17 lbf tear resistance and 36 lbf puncture resistance.

Compliance Information

  • Meets SPCC (Spill Prevention, Control and Countermeasure Act) and EPA Container Storage Regulation 40 CFR 264.175.

Ordering & Shipping

Please reach out with any order or shipping questions - contact us by email or call toll free (800) 869-9633. We are happy to help with all of your containment needs to ensure you find the best secondary containment system.

Note: These modular wall spill containment systems ship LTL (less than load) within the United States. We will email to confirm the exact shipping cost upon receipt of your order.

Product Demonstration Video

Pricing and Order

Item Description Our Price Quantity
A8790U
Containment Wall 1ft System 10x49'
A8790U
Containment Wall 1ft System 10x49'

Spill Containment Wall Berm - 1'H System
Usable Dimensions: 10 feet wide x 49 feet long x 1 foot high. System Parts: 12 straight wall blocks, 4 corner blocks and one 16-foot x 55-foot liner. Materials: 30 mil textured polyethylene liner. Color: Yellow walls, Black liner. Capacity: 3978 gallons. Weight: 754 lbs.

$7,316.97
Others Charge
$8536.00
$7,316.97
Others Charge
$8536.00
Quantity
A8791U
Containment Wall 1ft System 68x68'
A8791U
Containment Wall 1ft System 68x68'

Spill Containment Wall Berm - 1'H System
Usable Dimensions: 68 feet wide x 68 long x 1 foot high. System Parts: 28 straight wall blocks, 4 corner blocks and one 74-foot x 74-foot liner. Materials: 30 mil textured polyethylene liner. Color: Yellow walls, Black liner. Capacity: 34802 gallons. Weight: 2066 lb.

$18,350.97
Others Charge
$21410.00
$18,350.97
Others Charge
$21410.00
Quantity
A8792U
Containment Wall 2ft System 16x55'
A8792U
Containment Wall 2ft System 16x55'

Spill Containment Wall Berm - 2'H System
Usable Dimensions: 16 feet wide x 55 feet long x 2 feet high. System Parts: 18 straight wall blocks, 4 corner blocks and one 27-foot x 66-foot liner. Materials: 30 mil textured polyethylene liner. Color: Yellow walls, Black liner. Capacity: 13716 gallons. Weight: 1821 lbs.

$12,643.97
Others Charge
$14751.00
$12,643.97
Others Charge
$14751.00
Quantity
A8793U
Containment Wall 2ft System 62x63'
A8793U
Containment Wall 2ft System 62x63'

Spill Containment Wall Berm - 2'H System
Usable Dimensions: 63 feet wide x 63 feet long x 2 feet high. System Parts: 32 straight wall blocks, 4 corner blocks and one 74-foot x 74-foot liner. Materials: 30 mil textured polyethylene liner. Color: Yellow walls, Black liner. Capacity: 60089 gallons. Weight: 3450 lbs.

$22,814.97
Others Charge
$26618.00
$22,814.97
Others Charge
$26618.00
Quantity
A8794U
Containment Wall 3ft System 11x55'
A8794U
Containment Wall 3ft System 11x55'

Spill Containment Wall Berm - 3'H System
Usable Dimensions: 11 feet wide x 55 feet long x 3 feet high. System Parts: 24 straight wall blocks, 4 corner blocks and one 27-foot x 71-foot liner. Materials: 30 mil textured polyethylene liner. Color: Yellow walls, Black liner. Capacity: 14336 gallons. Weight: 2157 lbs.

$13,661.97
Others Charge
$15027.00
$13,661.97
Others Charge
$15027.00
Quantity
A8795U
Containment Wall 3ft System 61x61'
A8795U
Containment Wall 3ft System 61x61'

Spill Containment Wall Berm - 3'H System
Usable Dimensions: 61 feet wide x 61 feet long x 3 feet high. System Parts: 44 straight wall blocks, 4 corner blocks and one 77-foot x 77-foot liner. Materials: 30 mil textured polyethylene liner. Color: Yellow walls, Black liner. Capacity: 83582 gallons. Weight: 3958 lbs.

$25,114.97
Others Charge
$27625.00
$25,114.97
Others Charge
$27625.00
Quantity
A8760U

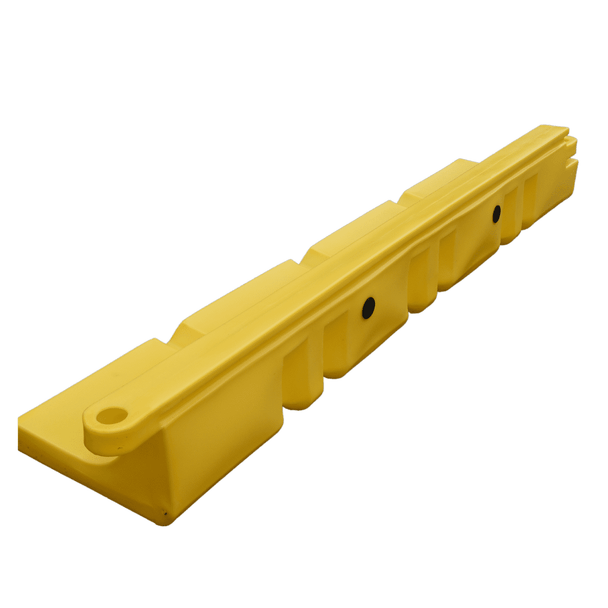

Containment Wall 1ft Straight Component
A8760U
Containment Wall 1ft Straight Component

Spill Containment Wall Berm - 1'H Components
One-foot High Straight Section. Dimensions: 12 inches wide x 120 inches long x 12 inches high. One (1) unit per case. Material: polyethylene. Color: Yellow. Weight: 33 lbs.

$533.97
Others Charge
$623.00
$533.97
Others Charge
$623.00
Quantity
A8761U
Containment Wall 1ft Corner Component
A8761U
Containment Wall 1ft Corner Component

Spill Containment Wall Berm - 1'H Components
One-foot High Corner Section. Dimensions: 22 inches wide x 22 inches long x 12 inches high. One (1) unit per case. Material: polyethylene. Color: Yellow. Weight: 9 lbs.

$104.97
Others Charge
$123.00
$104.97
Others Charge
$123.00
Quantity
A8762U
Containment Wall 2ft Straight Component
A8762U
Containment Wall 2ft Straight Component

Spill Containment Wall Berm - 2'H Components
Two-foot High Straight Section. Dimensions: 24 inches wide x 100 inches long x 24 inches high. One (1) unit per case. Material: polyethylene. Color: Yellow. Weight: 70 lbs.

$636.97
Others Charge
$743.00
$636.97
Others Charge
$743.00
Quantity
A8763U
Containment Wall 2ft Corner Component
A8763U
Containment Wall 2ft Corner Component

Spill Containment Wall Berm - 2'H Components
Two-foot High Corner Section. Dimensions: 30 inches wide x 35 inches long x 24 inches high. One (1) unit per case. Material: polyethylene. Color: Yellow. Weight: 26 lbs.

$290.97
Others Charge
$340.00
$290.97
Others Charge
$340.00
Quantity
A8764U
Containment Wall 3ft Straight Component
A8764U
Containment Wall 3ft Straight Component

Spill Containment Wall Berm - 3'H Components
Three-foot High Straight Section. Dimensions: 24 inches wide x 72 inches long x 36 inches high. One (1) unit per case. Material: polyethylene. Color: Yellow. Weight: 60 lbs.

$601.97
Others Charge
$703.00
$601.97
Others Charge
$703.00
Quantity
A8765U
Containment Wall 3ft Corner Component
A8765U
Containment Wall 3ft Corner Component

Spill Containment Wall Berm - 3'H Components
Three-foot High Corner Section. Dimensions: 30 inches wide x 30 inches long x 36 inches high. One (1) unit per case. Material: polyethylene. Color: Yellow. Weight: 36 lbs.

$366.97
Others Charge
$428.00
$366.97
Others Charge
$428.00
Quantity
A8770U
Containment Wall Liner Component
A8770U
Containment Wall Liner Component

Spill Containment Wall Berm - Components
30 ml textured Polyethylene Liner. Call (800)869-9633 or email: sales@absorbentsonline.com for quote on size needed.

$0.00
Quantity
