Gas Cylinder Stands & Holders

Storage brackets, stands & process stations for compressed gas cylinders

Gas cylinder stands and bracket holders
Gas cylinder stands and bracket holders
Next Prev
Gas cylinder stands and bracket holdersfour gas cylinder wall mount bracket A35276J2in LB gas cylinder holders and carrierBench mount gas cylinder bracket A35258Jmobile or floor mount cylinder stand A35286Jbench mount 5in calibration cylinder stand A35328J
  Made In The USA

Quick Overview

  • Gas cylinder stands help prevent dangerous tipping situations
  • Mobile, bench mount, wall bracket or floor cylinder holders
  • Heavy duty PVC, HDPE, powder coat or stainless steel construction
  • Holders for LB gas bottles and larger cylinder diameters
  • Different configuration units for one to 8 cylinder capacity
  • Polypropylene straps with steel cinch buckles secure bottles
  • Built in openings for optional steel chain securement
  • Ideal for safe storage of different industrial gas cylinders
  • Helps OSHA, NFP1, NFPA 55, and CGA regulation compliance

From $35.97

Safeguard Your Tanks & Stay Organized With Our Gas Cylinder Holders and Stands!

Due to the dangerous nature of gas cylinders proper storage is essential. It can be the difference between neat, organized processes and disastrous tragedy in the workplace. With our gas cylinder holders and stands, you can rest easy knowing your operation is safe and compliant!

These gas cylinder stands make it easy to safeguard pressurized propane tanks, gas bottles, and other cylinders. They save precious floor space in your facility while eliminating tipping hazards. Whether you just need to store 1-2 tanks or 12+ tanks, we’ve got a holder for you. And if you aren’t sure which one is right for you, just reach out. Since 1985, we’ve helped businesses like yours remain safe and compliant.

What Makes Our Gas Cylinder Stands & Holders Better Than The Rest?

Because cylinders house pressurized gases, shell or valve damage can be extremely dangerous. Risks from strikes while moving equipment or pallets around your facility can result in disaster. That’s why you can only rely on the absolute best gas cylinder holders and stands. And that’s exactly what we offer here at AbsorbentsOnline.

Our Gas Cylinder Holders Are The Safest & Most Stable In The Industry

Store 1-12 cylinders in varying configurations to suit your facility's space. Bench or wall bracket units will hold up to four cylinders. Cylinder floor stands include mountable and mobile options, including cylinder carts. Process station gas cylinder stands have an elevated panel for stowing cylinder controls, welding hoses, and other cross-over devices.

Steel and other heavy-duty construction materials offer excellent chemical resistance. They also ensure these durable stands have a long service life. They are a great solution to stabilize gas cylinders common to industrial and commercial job sites like acetylene, oxygen, butane, carbon dioxide, helium, hydrogen, and nitrogen.

Our smaller size holders are for 2 to 3-inch calibration gas cylinders or lecture bottles (LB) commonly found in laboratories. They feature chemically welded PVC with formed walls and pre-drilled holes for bench or wall mounting. These holders are both durable and chemical resistant.

We also have a wide selection of wall brackets, bench mounts, or cylinder floor stands. Use these units to hold cylinder diameters of 4 up to 12 inches. These holders and stands are far and away the safest and most stable in the industry. And, they’re cost effective - helping your stretch your budget further.

We’ve Got Accessories To Make Your Gas Cylinder Stands Even Safer

Want to make your storage stand even safer? We’ve got you covered. Lockable safety caps help protect and prevent damage to regulator valve parts. These come in different threads depending on if you have low or high-pressure cylinders. And, we’ve got 41-inch chains of steel or stainless steel. These allow secondary cylinder securement and even comes with a replacement polypropylene strap with a steel cinch buckle.

All Your Safe Gas Storage Necessities Are Available Here

Along with these stands, you’ll find all your other gas storage necessities here at AbsorbentsOnline. Here are some popular collections you may be interested in:



Gas Cylinder Stand Comparison Chart

Item Number Cylinder Capacity Cylinder Size Mount Style Mount Holes Strap Type Material Dimensions
A35256JWall Mount HDPE Gas Cylinder Bracket with Chain A35256J

1
compressed/ pressurized gas cylinder

 4" - 12" diameter Wall 2

1
Poly cinch strap with steel buckle & 1 steel chain

 HDPE 10.375"W x 2.5"D x 4"H
A35250J Wall Mount Single Gas Cylinder Bracket A35250J

1
compressed/ pressurized gas cylinder

 4" - 12" diameter Wall 2

1
Poly cinch strap with steel buckle

 Powder-coat steel 8"W x 2.25"D x 4.25"H
A35254JWall Mount Gas Cylinder Bracket with Steel Chain A35254J

1
compressed/ pressurized gas cylinder

 4" - 12" diameter Wall 2

1
Poly cinch strap with steel buckle & 1 steel chain

 Powder-coat steel 8"W x 2.25"D x 4.25"H
A35252JStainless Steel Wall Mount Gas Cylinder Bracket A35252J

1
compressed/ pressurized gas cylinder

 4" - 12" diameter Wall 2

1
Poly cinch strap with nylon side latch buckle

 12-gauge stainless steel 8"W x 2.25"D x 4.25"H
A35262JWall Mount 16in Gas Cylinder Bracket A35262J

1
compressed/ pressurized gas cylinder

 9" - 16" diameter Wall 2

1
Poly cinch strap with steel buckle

 Powder-coat steel 18"W x 2.25"D x 4.25"H
A35264JWall Mount Two Gas Cylinders Bracket A35264J

2
compressed/ pressurized gas cylinders

 4" - 12" diameter Wall 4

2
Poly cinch straps with steel buckle

 Powder-coat steel 23.75"W x 2.25"D x 4.25"H
A35268JWall Mount 2-Gas Cylinders Bracket with Chain A35268J

2
compressed/ pressurized gas cylinders

 4" - 12" diameter Wall 4

2
Poly cinch straps with steel buckle & 1 steel chain

 Powder-coat steel 23.75"W x 2.25"D x 4.25"H
A35266JWall Mount Stainless Steel 2-Gas Cylinders Bracket A35266J

2
compressed/ pressurized gas cylinders

 4" - 12" diameter Wall 4

2
Poly cinch straps with nylon side latch buckle

 12-gauge stainless steel 23.75"W x 2.25"D x 4.25"H
A35274JWall Mount 3-Gas Cylinders Bracket A35274J

3
compressed/ pressurized gas cylinders

 4" - 12" diameter Wall 6

3
Poly cinch straps with steel buckle

 Powder-coat steel 35.75"W x 2.25"D x 4.25"H
A35276JWall Mount 4-Gas Cylinders Bracket A35276J

4
compressed/ pressurized gas cylinders

 4" - 12" diameter Wall 8

4
Poly cinch straps with steel buckle

 Powder-coat steel 48.75"W x 2.25"D x 4.25"H
A35258JBench Mount Gas Cylinder Bracket A35258J

1
compressed/ pressurized gas cylinder

 4" - 12" diameter Bench 0

1
Poly cinch strap with steel buckle

 Powder-coat steel 8"W x 4"D x 4.25"H
A35260JStainless Steel Bench Mount Gas Cylinder Bracket A35260J

1
compressed/ pressurized gas cylinder

 4" - 12" diameter Bench 0

1
Poly cinch strap with steel buckle

 12-gauge stainless steel 8"W x 4.25"D x 4.25"H
A35270J2-Gas Cylinders Bench Mount Bracket A35270J

2
compressed/ pressurized gas cylinders

 4" - 12" diameter Bench 0

2
Poly cinch straps with steel buckle

 Powder-coat steel 23.75"W x 4"D x 4.25"H
A35272J2-Gas Cylinders Bench Mount Stainless Steel Bracket A35272J

2
compressed/ pressurized gas cylinders

 4" - 12" diameter Bench 0

2
Poly cinch straps with nylon side latch buckle

 12-gauge stainless steel 23.75"W x 4"D x 4.25"H
A35278JFloor Mount Single Gas Cylinder Stand A35278J

1
compressed/ pressurized gas cylinder

 4" - 12" diameter Floor 4

2
Poly cinch straps with steel buckle

 Powder-coat steel 18"W x 13.75"D x 30"H
A35282JLow Profile Single Gas Cylinder Stand A35282J

1
compressed/ pressurized gas cylinder

 4" - 10" diameter Floor 3

1
Poly cinch strap with steel buckle & clamping bar

 Powder-coat steel 16"W x 16"D x 15"H
A35304JFloor Mount Gas Cylinder Process Station A35304J

1
compressed/ pressurized gas cylinder

 4" - 12" diameter Floor 4

2
Poly cinch straps with steel buckle

 Powder-coat steel 18"W x 13.75"D x 72"H
A35286J

1
compressed/ pressurized gas cylinder

 4" - 10" diameter Floor/
Mobile		 4

2
Poly cinch straps with steel buckle

 Powder-coat steel 16.25"W x 10.5"D x 41"H
(66"H with post)
A35280JStainless Steel Gas Cylinder Stand A35280J

1
compressed/ pressurized gas cylinder

 4" - 12" diameter Floor 4

2
Poly cinch straps with nylon side latch buckle

 12-gauge stainless steel 19"W x 13.5"D x 30"H
A35288JFloor Mount Double Gas Cylinder Stand A35288J

2
compressed/ pressurized gas cylinders

 4" - 12" diameter Floor 4

2
Poly cinch straps with steel buckle

 Powder-coat steel 27.75"W x 10.5"D x 30"H
A35306JFloor Mount 2-Gas Cylinders Process Station A35306J

2
compressed/ pressurized gas cylinders

 4" - 12" diameter Floor 4

2
Poly cinch straps with steel buckle

 Powder-coat steel 27.75"W x 10.5"D x 72"H
A35292JDouble Gas Cylinder Mobile Stand A35292J

2
compressed/ pressurized gas cylinders

 4" - 10" diameter Floor/
Mobile		 4

4
Poly cinch straps with steel buckle

 Powder-coat steel 27.75"W x 10.5"D x 41"H
(66"H with posts)
A35290JStainless Steel Double Gas Cylinder Stand A35290J

2
compressed/ pressurized gas cylinders

 4" - 12" diameter Floor 4

2
Poly cinch straps with nylon side latch buckle

 12-gauge stainless steel 27.75"W x 10.5"D x 30"H
A35294JFloor Mount Three Gas Cylinder Stand A35294J

3
compressed/ pressurized gas cylinders

 4" - 12" diameter Floor 4

3
Poly cinch straps with steel buckle

 Powder-coat steel 39.75"W x 10.5"D x 30"H
A35308JFloor Mount 3-Gas Cylinders Process Station A35308J

3
compressed/ pressurized gas cylinders

 4" - 12" diameter Floor 4

3
Poly cinch straps with steel buckle

 Powder-coat steel 40"W x 10.5"D x 72"H
A35296J4-Gas Cylinder Back to Back Stand A35296J

4
compressed/ pressurized gas cylinders (back to back)

 4" - 12" diameter Floor 4

8
Poly cinch straps with steel buckle

 Powder-coat steel 32"W x 23"D x 30"H
A35298J4-Gas Cylinder Inline Stand A35298J

4
compressed/ pressurized gas cylinders (inline)

 4" - 12" diameter Floor Floor

8
Poly cinch straps with steel buckle

 Powder-coat steel 52"W x 14"D x 30"H
A35312J4-Gas Cylinder Process Station Stand A35312J

4
compressed/ pressurized gas cylinders (back to back)

 4" - 12" diameter Floor 4

8
Poly cinch straps with steel buckle

 Powder-coat steel 32"W x 23"D x 72"H
A35310J4-Gas Cylinder Dual Strut Process Station A35310J

4
compressed/ pressurized gas cylinders (inline)

 4" - 12" diameter Floor 4

8
Poly cinch straps with steel buckle

 Powder-coat steel 51.75"W x 14"D x 72"H
A35314J6-Gas Cylinders Process Station Stand A35314J

6
compressed/ pressurized gas cylinders (back to back)

 4" - 12" diameter Floor 4

12
Poly cinch straps with steel buckle

 Powder-coat steel 48"W x 23"D x 72"H

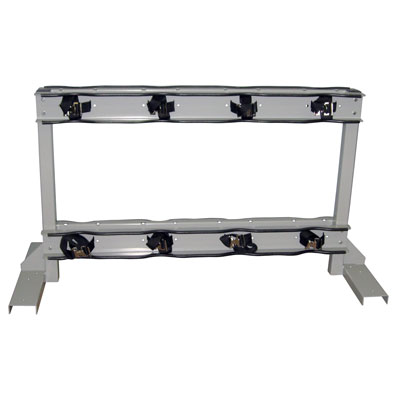

A35302J8-Gas Cylinder Back to Back Stand A35302J

8
compressed/ pressurized gas cylinders (back to back)

 4" - 12" diameter Floor 4

16
Poly cinch straps with steel buckle

 Powder-coat steel 56"W x 23"D x 30"H
A35056J4-tank gas cylinder cart A35056J

4
compressed/ pressurized gas cylinders

 4" - 12" diameter Mobile n/a

8
Poly cinch straps with steel buckle

 Powder-coat steel 22"W x 40"D x 31"H
A35058J6-Tank Gas Cylinder Cart with Casters A35058J

6
compressed/ pressurized gas cylinders

 4" - 12" diameter Mobile n/a

12
Poly cinch straps with steel buckle

 Powder-coat steel 24"W x 52"D x 36.25"H





Small Gas Cylinder Holder Comparison Chart

Item Number Cylinder Capacity Cylinder Size Mount Style Mount Holes Material Dimensions
A35316JBench Mount 2in Lecture Bottle Gas Cylinder Holder A35316J

1
lecture bottle/ calibration gas cylinder

 2"
diameter		 Mobile/
Bench		 4 Chemically welded PVC 7.75"W x 7.75"D x 5"H
A35254J2in LB Style Calibration Gas Cylinder Holder A35318J

1
lecture bottle/ calibration gas cylinder

 2"
diameter		 Bench/
Wall		 4 Chemically welded PVC 7.75"W x 7.75"D x 6"H
A35320JWall or Bench Mount 2in Gas Cylinders Holder A35320J

3
lecture bottles/ calibration gas cylinders

 2"
diameter		 Bench/
Wall 		  4 Chemically welded PVC 11"W x 4"D x 7.5"H
2in LB Gas Cylinders Holder Carrier A35322J

6
lecture bottles/ calibration gas cylinders

 2"
diameter		 Mobile  0  Chemically welded PVC 9"W x 6"D x 19"H
A35324JBench Mount 3in Gas Cylinder Holder A35324J

1
calibration gas cylinder

 3"
diameter		 Bench 4  Chemically welded PVC 7.75"W x 7.75"D x 6"H
A35326JBench Mount Oxygen Cylinder Ring Stand Holder A35326J

1
medical oxygen/ calibration gas cylinder

 3.25-4.25"
diameter		 Bench 3  Powder-coat steel & nylon set screws 9.5"W x 9.5"D x 7"H
A35328JBench Mount 5in Gas Cylinder Ring Stand A35328J

1
medical oxygen/ calibration gas cylinder

 5.75-6.75"
diameter		 Bench  4  Powder-coat steel & nylon set screws 14.5"W x 14.5"D x 7"H
A35330JBench Mount 8in Gas Cylinder Ring Stand A35330J

1
medical oxygen/ calibration gas cylinder

 7.75-8.75"
diameter		 Bench  4 Powder-coat steel & nylon set screws 16.5"W x 16.5"D x 7"H





Compliance Information

Helps comply with NFP1, NFPA 55, CGA and OSHA regulations.

OSHA Compliant icon NFPA Compliant icon

Ordering and Shipping

Email or call us toll free at (800) 869-9633 for shopping cart, checkout, warranty or product questions.

Also see our barricade-style gas cylinder racks, including units for larger cryogenic tanks. We also offer cage-style gas cylinder storage cabinets for indoor and outdoor use.

Pricing and Order

Item Description Our Price Quantity

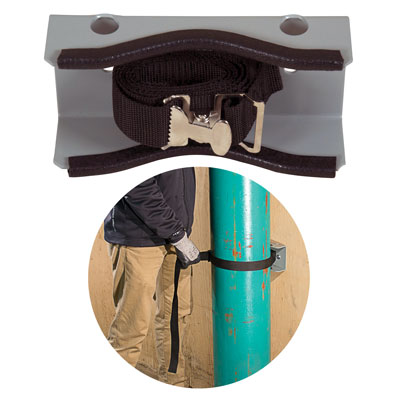

A35250J
Wall Mount Single Gas Cylinder Bracket A35250J		 A35250J
Wall Mount Single Gas Cylinder Bracket A35250J

Wall Mount Gas Cylinder Bracket - 1-Tank
Powder-coated steel; vinyl bumper guard edging cylinder grip; two 0.406" dia. mount holes; openings for support chains; one poly cinch strap with steel buckle.
Capacity: One (1) 4 to 12in diameter cylinder.
Dimensions: 8"W x 2.25"D x 4.25"H; Weight: 3lbs

 $35.97
Others Charge
$42		 $35.97
Others Charge
$42
Quantity
A35256J
Wall Mount HDPE Gas Cylinder Bracket with Chain A35256J		 A35256J
Wall Mount HDPE Gas Cylinder Bracket with Chain A35256J

Wall Mount Gas Cylinder Bracket with Steel Chain - 1-Tank
Adjustable width, high density polyethylene (HDPE) with recessed, locking set screws; two 0.3" dia. mount holes; one poly cinch strap with steel buckle; one welded, plated, heavy-duty size 2/0 steel chain with twist link.
Capacity: One (1) 4 to 12in diameter cylinder.
Dimensions: 10.375"W x 2.5"D x 4"H; Weight: 2.5lbs

 $38.97
Others Charge
$46		 $38.97
Others Charge
$46
Quantity
A35252J
Stainless Steel Wall Mount Gas Cylinder Bracket A35252J		 A35252J
Stainless Steel Wall Mount Gas Cylinder Bracket A35252J

Wall Mount Stainless Steel Gas Cylinder Bracket - 1-Tank
Fully weld 12-gauge stainless steel; vinyl bumper guard edging cylinder grip; two 0.406" dia. mount holes; openings for support chains; one poly cinch strap with nylon side latch buckle.
Capacity: One (1) 4 to 12in diameter cylinder.
Dimensions: 8"W x 2.25"D x 4.25"H; Weight: 3lbs

 $83.97
Others Charge
$99		 $83.97
Others Charge
$99
Quantity
A35254J
Wall Mount Gas Cylinder Bracket with Steel Chain A35254J		 A35254J
Wall Mount Gas Cylinder Bracket with Steel Chain A35254J

Wall Mount Gas Cylinder Bracket with Steel Chain - 1-Tank
Powder-coated steel; vinyl bumper guard edging cylinder grip; two 0.406" dia. mount holes; one poly cinch strap with steel buckle; one welded, plated, heavy-duty size 2/0 steel chain with twist link.
Capacity: One (1) 4 to 12in diameter cylinder.
Dimensions: 8"W x 2.25"D x 4.25"H; Weight: 4lbs

 $48.97
Others Charge
$57		 $48.97
Others Charge
$57
Quantity
A35262J
Wall Mount 16in Gas Cylinder Bracket A35262J		 A35262J
Wall Mount 16in Gas Cylinder Bracket A35262J

Wall Mount 16in Gas Cylinder Bracket - 1-Tank
Powder-coated steel; vinyl bumper guard edging cylinder grip; two 0.406" dia. mount holes; openings for support chains; one poly cinch strap with steel buckle.
Capacity: One (1) 9 to 16in diameter cylinder.
Dimensions: 18"W x 2.25"D x 4.25"H; Weight: 7lbs

 $114.97
Others Charge
$137		 $114.97
Others Charge
$137
Quantity
A35264J
Wall Mount Two Gas Cylinders Bracket A35264J		 A35264J
Wall Mount Two Gas Cylinders Bracket A35264J

Wall Mount Gas Cylinder Bracket - 2-Tanks
Powder-coated steel; vinyl bumper guard edging cylinder grip; four 0.406" dia. mount holes; openings for support chains; two poly cinch straps with steel buckle.
Capacity: Two (2) 4 to 12in diameter cylinders.
Dimensions: 23.75"W x 2.25"D x 4.25"H; Weight: 7lbs

 $85.97
Others Charge
$102		 $85.97
Others Charge
$102
Quantity
A35268J
Wall Mount 2-Gas Cylinders Bracket with Chain A35268J		 A35268J
Wall Mount 2-Gas Cylinders Bracket with Chain A35268J

Wall Mount Gas Cylinder Bracket - 2-Tanks
Powder-coated steel; vinyl bumper guard edging cylinder grip; four 0.406" dia. mount holes; two poly cinch straps with steel buckle; one welded, plated, heavy-duty size 2/0 steel chain with twist link.
Capacity: Two (2) 4 to 12in diameter cylinders.
Dimensions: 23.75"W x 2.25"D x 4.25"H; Weight: 9lbs

 $111.97
Others Charge
$134		 $111.97
Others Charge
$134
Quantity
A35266J
Wall Mount Stainless Steel 2-Gas Cylinders Bracket A35266J		 A35266J
Wall Mount Stainless Steel 2-Gas Cylinders Bracket A35266J

Wall Mount Stainless Steel Gas Cylinder Bracket - 2-Tanks
Fully weld 12-gauge stainless steel; vinyl bumper guard edging cylinder grip; four 0.406" dia. mount holes; openings for support chains; two poly cinch straps with nylon side latch buckle.
Capacity: Two (2) 4 to 12in diameter cylinders.
Dimensions: 23.75"W x 2.25"D x 4.25"H; Weight: 9lbs

 $181.97
Others Charge
$218		 $181.97
Others Charge
$218
Quantity
A35274J
Wall Mount 3-Gas Cylinders Bracket A35274J		 A35274J
Wall Mount 3-Gas Cylinders Bracket A35274J

Wall Mount Gas Cylinder Bracket - 3-Tanks
Powder-coated steel; vinyl bumper guard edging cylinder grip; six 0.406" dia. mount holes; openings for support chains; three poly cinch straps with steel buckle.
Capacity: Three (3) 4 to 12in diameter cylinders.
Dimensions: 35.75"W x 2.25"D x 4.25"H; Weight: 11lbs

 $103.97
Others Charge
$123		 $103.97
Others Charge
$123
Quantity
A35276J
Wall Mount 4-Gas Cylinders Bracket A35276J		 A35276J
Wall Mount 4-Gas Cylinders Bracket A35276J

Wall Mount Gas Cylinder Bracket - 4-Tanks
Powder-coated steel; vinyl bumper guard edging cylinder grip; eight 0.406" dia. mount holes; openings for support chains; four poly cinch straps with steel buckle.
Capacity: Four (4) 4 to 12in diameter cylinders.
Dimensions: 48.75"W x 2.25"D x 4.25"H; Weight: 14lbs

 $149.97
Others Charge
$179		 $149.97
Others Charge
$179
Quantity
A35258J
Bench Mount Gas Cylinder Bracket A35258J		 A35258J
Bench Mount Gas Cylinder Bracket A35258J

Bench Mount Gas Cylinder Bracket - 1-Tank
Powder-coated steel; vinyl bumper guard edging cylinder grip; two 0.375" dia. clamping posts with 1.5" swivel pad faces; openings for support chain; one poly cinch strap with steel buckle. Clamps to tables 1" to 2.75" thick.
Capacity: One (1) 4 to 12in diameter cylinder.
Dimensions: 8"W x 4.25"D x 4.25"H; Weight: 3lbs

 $65.97
Others Charge
$78		 $65.97
Others Charge
$78
Quantity
A35260J
Stainless Steel Bench Mount Gas Cylinder Bracket A35260J		 A35260J
Stainless Steel Bench Mount Gas Cylinder Bracket A35260J

Bench Mount Stainless Steel Gas Cylinder Bracket - 1-Tank
Fully weld 12-gauge stainless steel; vinyl bumper guard edging cylinder grip; two 0.375" dia. clamping posts with 1.5" swivel pad faces; openings for support chain; one poly cinch strap with steel buckle. Clamps to tables 1" to 2.75" thick.
Capacity: One (1) 4 to 12in diameter cylinder.
Dimensions: 8"W x 4.25"D x 4.25"H; Weight: 3lbs

 $129.97
Others Charge
$154		 $129.97
Others Charge
$154
Quantity
A35270J
2-Gas Cylinders Bench Mount Bracket A35270J		 A35270J
2-Gas Cylinders Bench Mount Bracket A35270J

Bench Mount Gas Cylinder Bracket - 2-Tanks
Powder-coated steel; vinyl bumper guard edging cylinder grip; two 0.375" dia. clamping posts with 1.5" swivel pad faces; openings for support chains; two poly cinch straps with steel buckle. Clamps to tables 1" to 2.75" thick.
Capacity: Two (2) 4 to 12in diameter cylinders.
Dimensions: 23.75"W x 4"D x 4.25"H; Weight: 9lbs

 $133.97
Others Charge
$159		 $133.97
Others Charge
$159
Quantity
A35272J
2-Gas Cylinders Bench Mount Stainless Steel Bracket A35272J		 A35272J
2-Gas Cylinders Bench Mount Stainless Steel Bracket A35272J

Bench Mount Stainless Steel Gas Cylinder Bracket - 2-Tanks
Fully weld 12-gauge stainless steel; vinyl bumper guard edging cylinder grip; two 0.375" dia. clamping posts with 1.5" swivel pad faces; openings for support chains; two poly cinch straps with nylon side latch buckle. Clamps to tables 1" to 2.75" thick.
Capacity: Two (2) 4 to 12in diameter cylinders.
Dimensions: 23.75"W x 4"D x 4.25"H; Weight: 11lbs

 $281.97
Others Charge
$337		 $281.97
Others Charge
$337
Quantity
A35278J
Floor Mount Single Gas Cylinder Stand A35278J		 A35278J
Floor Mount Single Gas Cylinder Stand A35278J

Floor Mount Gas Cylinder Stand - 1-Tank
Continuous weld powder-coated steel; vinyl bumper guard edging cylinder grip; four 0.406" dia. mount holes; openings for support chain; two poly cinch straps with steel buckle.
Capacity: One (1) 4 to 12in diameter cylinder.
Dimensions: 18"W x 13.75"D x 30"H; Weight: 33lbs

 $228.97
Others Charge
$273		 $228.97
Others Charge
$273
Quantity
A35282J
Low Profile Single Gas Cylinder Stand A35282J		 A35282J
Low Profile Single Gas Cylinder Stand A35282J

Floor Mount Low Profile Gas Cylinder Stand - 1-Tank
Continuous weld powder-coated steel; 0.187" clamping bar with vinyl bumper guard edging cylinder grip (attaches by dual-thread rods and wing nuts); one poly cinch strap with steel buckle; three 0.406" dia. mount holes.
Capacity: One (1) 4 to 10in diameter cylinder.
Dimensions: 16"W x 16"D x 15"H; Weight: 21lbs

 $249.97
Others Charge
$298		 $249.97
Others Charge
$298
Quantity
A35304J
Floor Mount Gas Cylinder Process Station A35304J		 A35304J
Floor Mount Gas Cylinder Process Station A35304J

Floor Mount Gas Cylinder Stand/Process Station - 1-Tank
Continuous weld powder-coated steel; vinyl bumper guard edging cylinder grip; four 0.406" dia. mount holes; openings for support chains; two poly cinch straps with steel buckle.
Capacity: One (1) 4 to 12in diameter cylinder.
Dimensions: 18"W x 13.75"D x 72"H; Weight: 65lbs

 $344.97
Others Charge
$413		 $344.97
Others Charge
$413
Quantity
A35286J
Single Gas Cylinder Stand A35286J		 A35286J
Single Gas Cylinder Stand A35286J

Mobile/Floor Mount Gas Cylinder Stand - 1-Tank
Continuous weld powder-coated steel; vinyl bumper guard edging cylinder grip; locking post; four 0.406" dia. mount holes; openings for support chains; two poly cinch straps with steel buckle.
Capacity: One (1) 4 to 10in diameter cylinder.
Dimensions: 16.25"W x 10.5"D x 41"H (locking post extends to 66"H); Weight: 39lbs

 $407.97
Others Charge
$488		 $407.97
Others Charge
$488
Quantity
A35280J
Stainless Steel Gas Cylinder Stand A35280J		 A35280J
Stainless Steel Gas Cylinder Stand A35280J

Floor Mount Stainless Steel Gas Cylinder Stand - 1-Tank
Fully weld 12-gauge stainless steel; vinyl bumper guard edging cylinder grip; four 0.406" dia. mount holes; openings for support chains; two poly cinch straps with nylon side latch buckle.
Capacity: One (1) 4 to 12in diameter cylinder.
Dimensions: 19"W x 13.5"D x 30"H; Weight: 33lbs

 $547.97
Others Charge
$657		 $547.97
Others Charge
$657
Quantity
A35288J
Floor Mount Double Gas Cylinder Stand A35288J		 A35288J
Floor Mount Double Gas Cylinder Stand A35288J

Floor Mount Gas Cylinder Stand - 2-Tanks
Continuous weld powder-coated steel; vinyl bumper guard edging cylinder grip; four 0.406" dia. mount holes; openings for support chains; two poly cinch straps with steel buckle.
Capacity: Two (2) 4 to 12in diameter cylinder.
Dimensions: 27.75"W x 10.5"D x 30"H; Weight: 41lbs

 $273.97
Others Charge
$327		 $273.97
Others Charge
$327
Quantity
A35292J
Double Gas Cylinder Mobile Stand A35292J		 A35292J
Double Gas Cylinder Mobile Stand A35292J

Mobile/Floor Mount Gas Cylinder Stand - 2-Tanks
Continuous weld powder-coated steel; vinyl bumper guard edging cylinder grip; two locking posts; four 0.406" dia. mount holes; openings for support chains; four poly cinch straps with steel buckle.
Capacity: Two (2) 4 to 10in diameter cylinders.
Dimensions: 27.75"W x 10.5"D x 41"H (locking posts extend to 66"H); Weight: 47lbs

 $436.97
Others Charge
$523		 $436.97
Others Charge
$523
Quantity
A35306J
Floor Mount 2-Gas Cylinders Process Station A35306J		 A35306J
Floor Mount 2-Gas Cylinders Process Station A35306J

Floor Mount Gas Cylinder Stand/Process Station - 2-Tanks
Continuous weld powder-coated steel; vinyl bumper guard edging cylinder grip; four 0.406" dia. mount holes; openings for support chains; two poly cinch straps with steel buckle.
Capacity: Two (2) 4 to 12in diameter cylinders.
Dimensions: 27.75"W x 10.5"D x 72"H; Weight: 59lbs

 $414.97
Others Charge
$497		 $414.97
Others Charge
$497
Quantity
A35290J
Stainless Steel Double Gas Cylinder Stand A35290J		 A35290J
Stainless Steel Double Gas Cylinder Stand A35290J

Floor Mount Stainless Steel Gas Cylinder Stand - 2-Tanks
Fully weld 12-gauge stainless steel; vinyl bumper guard edging cylinder grip; four 0.406" dia. mount holes; openings for support chains; two poly cinch straps with nylon side latch buckle.
Capacity: Two (2) 4 to 12in diameter cylinder.
Dimensions: 27.75"W x 10.5"D x 30"H; Weight: 41lbs

 $997.97
Others Charge
$1,197		 $997.97
Others Charge
$1,197
Quantity
A35294J
Floor Mount Three Gas Cylinder Stand A35294J		 A35294J
Floor Mount Three Gas Cylinder Stand A35294J

Floor Mount Gas Cylinder Stand - 3-Tanks
Continuous weld powder-coated steel; vinyl bumper guard edging cylinder grip; four 0.406" dia. mount holes; openings for support chains; three poly cinch straps with steel buckle.
Capacity: Three (3) 4 to 12in diameter cylinder.
Dimensions: 39.75"W x 10.5"D x 30"H; Weight: 52lbs

 $397.97
Others Charge
$477		 $397.97
Others Charge
$477
Quantity
A35308J
Floor Mount 3-Gas Cylinders Process Station A35308J		 A35308J
Floor Mount 3-Gas Cylinders Process Station A35308J

Floor Mount Gas Cylinder Stand/Process Station - 3-Tanks
Continuous weld powder-coated steel; vinyl bumper guard edging cylinder grip; four 0.406" dia. mount holes; openings for support chains; three poly cinch straps with steel buckle.
Capacity: Three (3) 4 to 12in diameter cylinders.
Dimensions: 40"W x 10.5"D x 72"H; Weight: 84lbs

 $499.97
Others Charge
$599		 $499.97
Others Charge
$599
Quantity
A35296J
4-Gas Cylinder Back to Back Stand A35296J		 A35296J
4-Gas Cylinder Back to Back Stand A35296J

Floor Mount Gas Cylinder Stand - 4-Tanks (Back to Back)
Continuous weld powder-coated steel; vinyl bumper guard edging cylinder grip; four 0.406" dia. mount holes; openings for support chains; eight poly cinch straps with steel buckle.
Capacity: Four (4) 4 to 12in diameter cylinders.
Dimensions: 32"W x 23"D x 30"H; Weight: 69lbs

 $850.97
Others Charge
$616		 $850.97
Others Charge
$616
Quantity
A35298J
4-Gas Cylinder Inline Stand A35298J		 A35298J
4-Gas Cylinder Inline Stand A35298J

Floor Mount Gas Cylinder Stand - 4-Tanks (Inline)
Continuous weld powder-coated steel; vinyl bumper guard edging cylinder grip; four 0.406" dia. mount holes; openings for support chains; eight poly cinch straps with steel buckle.
Capacity: Four (4) 4 to 12in diameter cylinders.
Dimensions: 52"W x 14"D x 30"H; Weight: 70lbs

 $624.97
Others Charge
$749		 $624.97
Others Charge
$749
Quantity
A35312J
4-Gas Cylinder Process Station Stand A35312J		 A35312J
4-Gas Cylinder Process Station Stand A35312J

Floor Mount Gas Cylinder Stand/Process Station - 4-Tanks (Back to Back)
Continuous weld powder-coated steel; vinyl bumper guard edging cylinder grip; four 0.406" dia. mount holes; openings for support chains; eight poly cinch straps with steel buckle.
Capacity: Four (4) 4 to 12in diameter cylinders.
Dimensions: 32"W x 23"D x 72"H; Weight: 98lbs

 $797.97
Others Charge
$956		 $797.97
Others Charge
$956
Quantity
A35310J
4-Gas Cylinder Dual Strut Process Station A35310J		 A35310J
4-Gas Cylinder Dual Strut Process Station A35310J

Floor Mount Gas Cylinder Stand/Process Station - 4-Tanks (Inline)
Continuous weld powder-coated steel; vinyl bumper guard edging cylinder grip; four 0.406" dia. mount holes; openings for support chains; eight poly cinch straps with steel buckle.
Capacity: Four (4) 4 to 12in diameter cylinders.
Dimensions: 51.75"W x 14"D x 72"H; Weight: 98lbs

 $942.97
Others Charge
$1,130		 $942.97
Others Charge
$1,130
Quantity
A35300J
6-Gas Cylinder Back to Back Stand A35300J		 A35300J
6-Gas Cylinder Back to Back Stand A35300J

Floor Mount Gas Cylinder Stand - 6-Tanks (Back to Back)
Continuous weld powder-coated steel; vinyl bumper guard edging cylinder grip; four 0.406" dia. mount holes; openings for support chains; twelve poly cinch straps with steel buckle.
Capacity: Six (6) 4 to 12in diameter cylinders.
Dimensions: 44"W x 23"D x 30"H; Weight: 84lbs

 $731.97
Others Charge
$877		 $731.97
Others Charge
$877
Quantity
A35314J
6-Gas Cylinders Process Station Stand A35314J		 A35314J
6-Gas Cylinders Process Station Stand A35314J

Floor Mount Gas Cylinder Stand/Process Station - 6-Tanks (Back to Back)
Continuous weld powder-coated steel; vinyl bumper guard edging cylinder grip; four 0.406" dia. mount holes; openings for support chains; twelve poly cinch straps with steel buckle.
Capacity: Six (6) 4 to 12in diameter cylinders.
Dimensions: 48"W x 23"D x 72"H; Weight: 129lbs

 $1,037.97
Others Charge
$1,245		 $1,037.97
Others Charge
$1,245
Quantity
A35302J
8-Gas Cylinder Back to Back Stand A35302J		 A35302J
8-Gas Cylinder Back to Back Stand A35302J

Floor Mount Gas Cylinder Stand - 8-Tanks (Back to Back)
Continuous weld powder-coated steel; vinyl bumper guard edging cylinder grip; four 0.406" dia. mount holes; openings for support chains; sixteen poly cinch straps with steel buckle.
Capacity: Eight (8) 4 to 12in diameter cylinders.
Dimensions: 56"W x 23"D x 30"H; Weight: 90lbs

 $907.97
Others Charge
$1,088		 $907.97
Others Charge
$1,088
Quantity
A35056J
4-tank gas cylinder cart A35056J		 A35056J
4-tank gas cylinder cart A35056J

4-Tank Gas Cylinder Cart - 4in Locking Swivel & Fixed Direction Casters
Continuous weld steel frame with powder-coat finish; vinyl bumper guard edging cylinder grip; offset deck; openings for support chains; poly cinch straps with steel buckle.
Capacity: Four (4) 4 to 12in dia. cylinders. 1600lb (max.) load.
Dimensions: 22"W x 40"D x 31"H; Weight: 133lbs

 $1,031.97
Others Charge
$1,238		 $1,031.97
Others Charge
$1,238
Quantity
A35058J
6-Tank Gas Cylinder Cart with Casters A35058J		 A35058J
6-Tank Gas Cylinder Cart with Casters A35058J

6-Tank Gas Cylinder Cart - 4in Locking Swivel & Fixed Direction Casters
Continuous weld steel frame with powder-coat finish; vinyl bumper guard edging cylinder grip; offset deck; openings for support chains; poly cinch straps with steel buckle.
Capacity: Six (6) 4 to 12in dia. cylinders. 2000lb (max.) load.
Dimensions: 24"W x 52"D x 36.25"H; Weight: 163lbs

 $1,163.97
Others Charge
$1,395		 $1,163.97
Others Charge
$1,395
Quantity
A35316J
Bench Mount 2in Lecture Bottle Gas Cylinder Holder A35316J		 A35316J
Bench Mount 2in Lecture Bottle Gas Cylinder Holder A35316J

Mobile/Bench Mount Gas Cylinder Holder - 1 2in Bottle
Chemically welded PVC; four 0.25" dia. mount holes.
Capacity: One (1) 2" diameter lecture bottle style or calibration gas cylinder.
Dimensions: 7.75"W x 7.75"D x 5"H; Weight: 3lbs

 $51.97
Others Charge
$62		 $51.97
Others Charge
$62
Quantity
A35318J
2in LB Style Calibration Gas Cylinder Holder A35318J		 A35318J
2in LB Style Calibration Gas Cylinder Holder A35318J

Wall/Bench Mount Gas Cylinder Holder - 1 2in Bottle
Chemically welded PVC; four 0.25" dia. mount holes.
Capacity: One (1) 2" diameter lecture bottle style or calibration gas cylinder.
Dimensions: 5"W x 4"D x 7.5"H; Weight: 1.5lbs

 $71.97
Others Charge
$85		 $71.97
Others Charge
$85
Quantity
A35320J
Wall or Bench Mount 2in Gas Cylinders Holder A35320J		 A35320J
Wall or Bench Mount 2in Gas Cylinders Holder A35320J

Wall/Bench Mount Gas Cylinder Holder - 3 2in Bottles
Chemically welded PVC; four 0.25" dia. mount holes.
Capacity: Three (3) 2" diameter lecture bottle style or calibration gas cylinders.
Dimensions: 11"W x 4"D x 7.5"H; Weight: 4lbs

 $114.97
Others Charge
$137		 $114.97
Others Charge
$137
Quantity
A35322J
2in LB Gas Cylinders Holder Carrier A35322J		 A35322J
2in LB Gas Cylinders Holder Carrier A35322J

Mobile/Carrier Style LB Gas Cylinder Holder - 6 2in Bottles
Chemically welded PVC with loop carrier handle.
Capacity: Six (6) 2" diameter lecture bottle style or calibration gas cylinders.
Dimensions: 9"W x 6"D x 19"H; Weight: 6lbs

 $148.97
Others Charge
$177		 $148.97
Others Charge
$177
Quantity
A35324J
Bench Mount 3in Gas Cylinder Holder A35324J		 A35324J
Bench Mount 3in Gas Cylinder Holder A35324J

Mobile/Bench Mount Gas Cylinder Holder - 1 3in Bottle
Chemically welded PVC; four 0.25" dia. mount holes.
Capacity: One (1) 3" diameter gas cylinder.
Dimensions: 7.75"W x 7.75"D x 6"H; Weight: 4lbs

 $69.97
Others Charge
$83		 $69.97
Others Charge
$83
Quantity
A35326J
Bench Mount Oxygen Cylinder Ring Stand Holder A35326J		 A35326J
Bench Mount Oxygen Cylinder Ring Stand Holder A35326J

Medical Oxygen Cylinder Stand  - 3.25-4.25in diameter
Powder-coat steel ring stand holder with 0.375in nylon set screws; three 0.312" dia. mount holes.
Capacity: One (1) 3.25" to 4.25" diameter calibration gas cylinder.
Dimensions: 9.5"W x 9.5"D x 7"H; Weight: 4lbs

 $79.97
Others Charge
$95		 $79.97
Others Charge
$95
Quantity
A35328J
Bench Mount 5in Gas Cylinder Ring Stand A35328J		 A35328J
Bench Mount 5in Gas Cylinder Ring Stand A35328J

Medical Oxygen Cylinder Stand - 5.75-6.75in diameter
Powder-coat steel ring stand holder with 0.375in nylon set screws; four 0.312" dia. mount holes.
Capacity: One (1) 5.75" to 6.75" diameter calibration gas cylinder.
Dimensions: 14.5"W x 14.5"D x 7"H; Weight: 7lbs

 $131.97
Others Charge
$157		 $131.97
Others Charge
$157
Quantity
A35330J
Bench Mount 8in Gas Cylinder Ring Stand A35330J		 A35330J
Bench Mount 8in Gas Cylinder Ring Stand A35330J

Medical Oxygen Cylinder Stand - 7.75-8.75in diameter
Powder-coat steel ring stand holder with 0.375in nylon set screws; four 0.312" dia. mount holes.
Capacity: One (1) 7.75" to 8.75" diameter calibration gas cylinder.
Dimensions: 16.5"W x 16.5"D x 7"H; Weight: 8lbs

 $145.97
Others Charge
$174		 $145.97
Others Charge
$174
Quantity
A35406J
54in polypropylene support strap for gas cylinders A35406J		 A35406J
54in polypropylene support strap for gas cylinders A35406J

Gas Cylinder Support - 54in Polypropylene Strap
Heavy-duty polypropylene strap assembly with steel buckle.
Compatibility: Replacement support strap for gas cylinder storage stands, brackets, hand trucks and carts. Rated at 1138 lbs.
Dimensions: 1.5"W x 54"D x 1"H; Weight: 0.2lbs

 $19.97
Others Charge
$11		 $19.97
Others Charge
$11
Quantity
A35366J
41in steel support chain for gas cylinder stands A35366J		 A35366J
41in steel support chain for gas cylinder stands A35366J

Gas Cylinder Bracket - 41in Chain
Welded and plated size 2/0 heavy-duty steel chain with twist link.
Compatibility: Secondary support chain for gas cylinder storage stands and brackets.
Dimensions: 2"W x 41"D x 1"H; Weight: 1lbs

 $13.97
Others Charge
$16		 $13.97
Others Charge
$16
Quantity
A35368J
41in stainless steel support chain for gas cylinder stands A35368J		 A35368J
41in stainless steel support chain for gas cylinder stands A35368J

Gas Cylinder Bracket - 41in Stainless Steel Chain
Heavy-duty size 2/0 type 316 stainless steel chain with 0.187" proof coil.
Compatibility: Secondary support chain for gas cylinder storage stands and brackets.
Dimensions: 2"W x 41"D x 1"H; Weight: 1.25lbs

 $60.97
Others Charge
$72		 $60.97
Others Charge
$72
Quantity
A35360J
gas cylinder safety snap cap A35360J		 A35360J
gas cylinder safety snap cap A35360J

Gas Cylinder Safety Snap Cap - Low Pressure, Fine Thread
Welded, powder-coated steel. Includes brass padlock.
Compatibility: 3.5in x 11UN coarse thread high pressure cylinders. Meets ISO 11117, DOT 49 CFR, CSA B340, and CGA V-9
Dimensions: 5"W x 4"D x 7.5"H; Weight: 4lbs

 $183.97
Others Charge
$219		 $183.97
Others Charge
$219
Quantity
A35364J
gas cylinder safety snap cap A35364J		 A35364J
gas cylinder safety snap cap A35364J

Gas Cylinder Safety Snap Cap - Low Pressure, Coarse Thread
Welded, powder-coated steel. Includes brass padlock.
Compatibility: 3.5in x 8UN coarse thread high pressure cylinders. Meets ISO 11117, DOT 49 CFR, CSA B340, and CGA V-9
Dimensions: 5"W x 4"D x 7.5"H; Weight: 4lbs

 $183.97
Others Charge
$219		 $183.97
Others Charge
$219
Quantity
A35358J
gas cylinder safety snap cap A35358J		 A35358J
gas cylinder safety snap cap A35358J

Gas Cylinder Safety Snap Cap - High Pressure, Fine Thread
Welded, powder-coated steel. Includes brass padlock.
Compatibility: 3.125in x 11UN fine thread high pressure cylinders. Meets ISO 11117, DOT 49 CFR, CSA B340, and CGA V-9
Dimensions: 5"W x 4"D x 7.5"H; Weight: 4lbs

 $183.97
Others Charge
$219		 $183.97
Others Charge
$219
Quantity
A35362J
gas cylinder safety snap cap A35362J		 A35362J
gas cylinder safety snap cap A35362J

Gas Cylinder Safety Snap Cap - High Pressure, Coarse Thread
Welded, powder-coated steel. Includes brass padlock.
Compatibility: 3.125in x 7UN coarse thread high pressure cylinders. Meets ISO 11117, DOT 49 CFR, CSA B340, and CGA V-9
Dimensions: 5"W x 4"D x 7.5"H; Weight: 4lbs

 $183.97
Others Charge
$219		 $183.97
Others Charge
$219
Quantity
View Shopping Cart



Absorbents Online Appreciates Your Business!
For Personalized Customer Service, Call Us Toll Free: 800-869-9633

Our Most Popular Products
