Gas Cylinder Cabinets

Safe and secure storage solutions for compressed gas/air tank cylinders

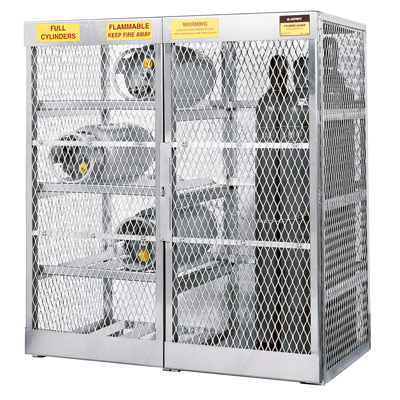

gas cylinder storage cabinet a23008j
gas cylinder storage cabinet a23008j
Next Prev
gas cylinder storage cabinet a23008jcompressed and LPG gas cylinder storage cabinetsCompressed gas cylinder storage locker a23007jvertical LPG tank storage cabinet a23010j
  Made In The USA

Quick Overview

  • Gas cylinder lockers suitable for indoor or outdoor storage
  • Store compressed gas cylinders and LPG or propane tanks
  • Safety cabinets available with 4 to 20 cylinder capacity
  • Choose vertical, horizontal storage or combination units
  • Corrosion, chemical and rust-resistant aluminum construction
  • Heavy gauge mesh sides and lockable door padlock hasp
  • Pre-drilled corner anchor holes for concrete slab mounting
  • Cabinets ship fully assembled and ready to use
  • NFPA 58 Gas Code and OSHA 1910 regulation compliant

From $937.97

Product Information

Our gas cylinder storage cabinets offer a safe way to house compressed gas tanks at your facility.

These strong, aluminum mesh cages protect cylinders from damage. And also help secure them against tampering or theft. Aiding your business compliance with NFPA 58 and OSHA 1910.253 regulations.

Store cylinders, medical gas, and high-pressure tanks of all types. Including nitrogen, chlorine, ammonia, helium, oxygen and propane cylinders.

Cabinets can accommodate up to 20 vertical cylinders. Horizontal or vertical storage lockers will hold up to 16 liquefied petroleum gas (LPG) tanks. The combination unit offers horizontal and vertical storage for both tank styles. Or, you can mix and match these modular lockers to suit individual application needs.

Gas cylinder storage cabinets are suitable for indoor and outdoor use. Making them ideal for industrial, manufacturing, construction, and welding job sites.

Heavy-duty yet lightweight construction

These gas cylinder lockers use an extremely durable all-aluminum construction. This material is very strong and capable of handling high load applications.

Additionally, aluminum is much lighter than stainless steel storage cabinets. Which means lower shipping and transport costs. Along with easier handling and installation on site. No forklifts necessary!

The extruded aluminum framing and removable horizontal storage shelves provide rigidity and strength. Coupled with heavy gauge 0.065in welded aluminum mesh sides. Which ensure full cylinder protection against impact or damage.

This ventilated design allows for quick visual inspection of propane cylinders. It also prevents any buildup of dangerous flammable gases that are often odorless.

Store cylinders indoors or out

All aluminum materials means these gas cylinder lockers will not rust, corrode, or discolor. So they are perfect for both indoor and outdoor storage of liquid propane or compressed gas cylinders.

The gas cylinder storage cabinets have a solid aluminum sloping roof panel. This backwards slant design ensures water and ice easily drains off the roof during inclement weather.

Raised floor panels keep horizontal and vertical cylinders off the ground. Protecting your cylinders from dirt and puddles. This design also adds structural support to the gas cylinder lockers.

Lockable for additional security

The manual close doors have a welded security lug and hasp on the front panel. Which allows you to attach an optional padlock to the safety cabinet. Providing added protection against unauthorized tampering, theft or damage.

You can also secure these gas cylinder lockers onto a concrete slab. Pre-drilled corner anchor holes accept 1/2” anchor bolts (not included) for easy mounting. Anchoring your cabinet provides even greater stability and security.

Compliant and safe storage

Propane, nitrogen, chlorine, helium, and oxygen are gases at room temperature. And means these gases are both combustible and dangerous.

LPG is odorless in its natural state. And also extremely flammable, with the potential to ignite in room temperature air.

Therefore, improper storage of your high-pressure, medical gas, and liquid propane cylinders presents serious workplace hazards. Such as asphyxiation, explosions, and more.

Each locker includes four warning labels for added safety precaution. They also come with chains to secure and prevent vertical cylinders from falling over.

The ventilated mesh locker design prevents any buildup of flammable gases. And complies with all other regulatory and industry safety requirements.



Technical Information

  • Heavy gauge 0.065 100% welded aluminum mesh with extruded frame.
  • Corrosion, chemical and rust-resistant.



Gas Cylinder Locker Comparison Chart

Model # Cylinder Capacity Shelves Doors Storage Type Dimensions
A23009J
Vertical Cabinet - 4 LPG cylinders | A23009J

4 LPG cylinders

20 or 33 lb
(5 or 8 gal)

0 1 Vertical 30"W x 32"D x 33.5"H
A23001J
Horizontal Cabinet - 4 LPG cylinders | A23001J

4 LPG cylinders

20 or 33 lb
(5 or 8 gal)

1

(Removable, not adjustable)
1 Horizontal 30"W x 32"D x 33.5"H
A23002J
Horizontal Cabinet - 6 LPG cylinders | A23002J

6 LPG cylinders

20 or 33 lb
(5 or 8 gal)

2

(Removable, not adjustable)
1 Horizontal 30"W x 32"D x 49.5"H
A23003J
Horizontal Cabinet - 8 LPG cylinders | A23003J

8 LPG cylinders

20 or 33 lb
(5 or 8 gal)

3

(Removable, not adjustable)
1 Horizontal 30"W x 32"D x 65"H
A23010J
Vertical Cabinet - 8 LPG cylinders | A23010J

8 LPG cylinders

20 or 33 lb
(5 or 8 gal)

1

(Removable, not adjustable)

1 Vertical 30"W x 32"D x 65"H
A23004J
Horizontal Cabinet - 12 LPG cylinders | A23004J

12 LPG cylinders

20 or 33 lb
(5 or 8 gal)

4

(Removable, not adjustable)
2 Horizontal 60"W x 32"D x 49.5"H
A23005J
Horizontal Cabinet - 16 LPG cylinders | A23005J

16 LPG cylinders

20 or 33 lb
(5 or 8 gal)

6

(Removable, not adjustable)
2 Horizontal 60"W x 32"D x 65"H
A23011J
Vertical Cabinet - 16 LPG cylinders | A23011J

16 LPG cylinders

20 or 33 lb
(5 or 8 gal)

2

(Removable, not adjustable)
2 Vertical 60"W x 32"D x 65"H
A23006J
Vertical Cabinet - 10 Gas Cylinders | A23006J
10 compressed/ pressurized gas cylinders 0 1 Vertical 30"W x 32"D x 65"H
A23007J
Vertical Cabinet - 10 Gas Cylinders | A23006J

20 compressed/ pressurized gas cylinders

0 2 Vertical 60"W x 32"D x 65"H
A23008J
Combo Cabinet - 8 horizontal LPG & 10 vertical gas cylinders | A23008J

8 LPG &

10 pressurized gas cylinders

3

(Removable, not adjustable)

2 Vertical and Horizontal 60"W x 32"D x 65"H



Compliance Information

Helps comply with OSHA 29 CFR 1910.110(f)(2)(i), 29 CFR 1910.253(c)(5)(v), CSA-B149.2, and NFPA 58 Gas Code regulations.

OSHA Compliant icon NFPA Compliant icon



Ordering and Shipping

These cabinets ship fully assembled and ready for use. Please email or call toll free (800) 869-9633 for specific order or shipping questions.

We also offer heavy-duty, OSHA and NFPA compliant safety cabinets for flammable storage. They come with different door type models, including manual close and self-closing doors.

And don't forget our full range of absorbents and spill kits. Along with gas cylinder carts for safe and easy tank transportation.

Pricing and Order

Item Description Our Price Quantity
A23009J
LPG Tank Vertical Storage Locker A23009J
A23009J
LPG Tank Vertical Storage Locker A23009J

Vertical Locker Cabinet - 4 LPG cylinders
Heavy gauge 0.065 100% welded aluminum mesh; extruded frame; 1 lockable door; four warning labels; cylinder secure chains.
Capacity: Four 20 to 33 lb. (5 to 8 gal) vertical LPG cylinders with 49.5 x 30 x 32" exterior dimensions.
Dimensions: 30"W x 32"D x 33.5"H; Weight: 76lbs

$937.97
Others Charge
$1,125
$937.97
Others Charge
$1,125
Quantity
A23001J
Horizontal Storage Locker for LPG Tanks A23001J
A23001J
Horizontal Storage Locker for LPG Tanks A23001J

Horizontal Locker Cabinet - 4 LPG cylinders
Heavy gauge 0.065 100% welded aluminum mesh; extruded frame; 1 lockable door; 1 removable shelf; four warning labels; cylinder secure chains.
Capacity: Four 20 to 33 lb. (5 to 8 gal) horizontal LPG cylinders with 49.5 x 30 x 32" exterior dimensions.
Dimensions: 30"W x 32"D x 33.5"H; Weight: 65lbs

$941.97
Others Charge
$1,129
$941.97
Others Charge
$1,129
Quantity
A23002J
Storage Cabinet for 6 Horizontal LPG Tanks A23002J
A23002J
Storage Cabinet for 6 Horizontal LPG Tanks A23002J

Horizontal Locker Cabinet - 6 LPG cylinders
Heavy gauge 0.065 100% welded aluminum mesh; extruded frame; 1 lockable door; 2 removable shelves; four warning labels; cylinder secure chains.
Capacity: Six 20 to 33 lb. (5 to 8 gal) horizontal LPG cylinders with 49.5 x 30 x 32" exterior dimensions.
Dimensions: 30"W x 32"D x 49.5"H; Weight: 87lbs

$1,113.97
Others Charge
$1,336
$1,113.97
Others Charge
$1,336
Quantity
A23003J
Storage Locker for 8 Horizontal LPG Tanks A23003J
A23003J
Storage Locker for 8 Horizontal LPG Tanks A23003J

Horizontal Locker Cabinet - 8 LPG cylinders
Heavy gauge 0.065 100% welded aluminum mesh; extruded frame; 1 lockable door; 3 removable shelves; four warning labels; cylinder secure chains.
Capacity: Eight 20 to 33 lb. (5 to 8 gal) horizontal LPG cylinders with 49.5 x 30 x 32" exterior dimensions.
Dimensions: 30"W x 32"D x 65"H; Weight: 105lbs

$1,259.97
Others Charge
$1,511
$1,259.97
Others Charge
$1,511
Quantity
A23010J
Storage Locker for 8 Vertical LPG Tanks A23010J
A23010J
Storage Locker for 8 Vertical LPG Tanks A23010J

Vertical Locker Cabinet - 8 LPG cylinders
Heavy gauge 0.065 100% welded aluminum mesh; extruded frame; 1 lockable door; 1 removable shelf; four warning labels; cylinder secure chains.
Capacity: Eight 20 to 33 lb. (5 to 8 gal) vertical LPG cylinders with 49.5 x 30 x 32" exterior dimensions.
Dimensions: 30"W x 32"D x 65"H; Weight: 84lbs

$1,390.97
Others Charge
$1,668
$1,390.97
Others Charge
$1,668
Quantity
A23004J
Storage Cabinet for 12 Horizontal LPG Tanks A23004J
A23004J
Storage Cabinet for 12 Horizontal LPG Tanks A23004J

Horizontal Locker Cabinet - 12 LPG cylinders
Heavy gauge 0.065 100% welded aluminum mesh; extruded frame; 2 lockable doors; 4 removable shelves; four warning labels; cylinder secure chains.
Capacity: Twelve 20 to 33 lb. (5 to 8 gal) horizontal LPG cylinders with 49.5 x 30 x 32" exterior dimensions.
Dimensions: 60"W x 32"D x 49.5"H; Weight: 134lbs

$2,070.97
Others Charge
$2,484
$2,070.97
Others Charge
$2,484
Quantity
A23005J
Storage Locker for 16 Horizontal LPG Cylinders A23005J
A23005J
Storage Locker for 16 Horizontal LPG Cylinders A23005J

Horizontal Locker Cabinet - 16 LPG cylinders
Heavy gauge 0.065 100% welded aluminum mesh; extruded frame; 2 lockable doors; 6 removable shelves; four warning labels; cylinder secure chains.
Capacity: Sixteen 20 to 33 lb. (5 to 8 gal) horizontal LPG cylinders with 49.5 x 30 x 32" exterior dimensions.
Dimensions: 60"W x 32"D x 65"H; Weight: 210lbs

$2,566.97
Others Charge
$3,079
$2,566.97
Others Charge
$3,079
Quantity
A23011J
Storage Locker for 16 Vertical LPG Tanks A23011J
A23011J
Storage Locker for 16 Vertical LPG Tanks A23011J

Vertical Locker Cabinet - 16 LPG cylinders
Heavy gauge 0.065 100% welded aluminum mesh; extruded frame; 2 lockable doors; 2 removable shelves; four warning labels; cylinder secure chains.
Capacity: Sixteen 20 to 33 lb. (5 to 8 gal) vertical LPG cylinders with 49.5 x 30 x 32" exterior dimensions.
Dimensions: 60"W x 32"D x 65"H; Weight: 153lbs

$2,769.97
Others Charge
$3,322
$2,769.97
Others Charge
$3,322
Quantity
A23008J
combo horizontal and vertical gas cylinder cabinet a23008j
A23008J
combo horizontal and vertical gas cylinder cabinet a23008j

Combo Locker Cabinet - 8 horizontal LPG & 10 vertical gas cylinders
Heavy gauge 0.065 100% welded aluminum mesh; extruded frame; 2 lockable doors; 3 removable shelves; four warning labels; cylinder secure chains.
Capacity: Eight horizontal LPG & 10 vertical compressed gas cylinders.
Dimensions: 60"W x 32"D x 65"H; Weight: 149lbs

$2,346.97
Others Charge
$2,815
$2,346.97
Others Charge
$2,815
Quantity
A23006J
Storage Locker for 10 Vertical Gas Cylinders A23006J
A23006J
Storage Locker for 10 Vertical Gas Cylinders A23006J

Vertical Locker Cabinet - 10 Gas Cylinders
Heavy gauge 0.065 100% welded aluminum mesh; extruded frame; 1 lockable door; four warning labels; cylinder secure chains.
Capacity: Ten vertical compressed/pressurized gas cylinders with 65 x 60 x 32" exterior dimensions.
Dimensions: 30"W x 32"D x 65"H; Weight: 93lbs

$1,334.97
Others Charge
$1,601
$1,334.97
Others Charge
$1,601
Quantity
A23007J
Storage Cabinet for 20 Vertical Gas Cylinders A23007J
A23007J
Storage Cabinet for 20 Vertical Gas Cylinders A23007J

Vertical Locker Cabinet - 20 Gas Cylinders
Heavy gauge 0.065 100% welded aluminum mesh; extruded frame; 2 lockable doors; four warning labels; cylinder secure chains.
Capacity: Twenty vertical compressed/pressurized gas cylinders with 65 x 60 x 32" exterior dimensions.
Dimensions: 60"W x 32"D x 65"H; Weight: 169lbs

$2,174.97
Others Charge
$2,609
$2,174.97
Others Charge
$2,609
Quantity
