Affordable Drive In/Out Containment Berm

Heavy-duty, drive-in spill containment solutions for tanker trucks

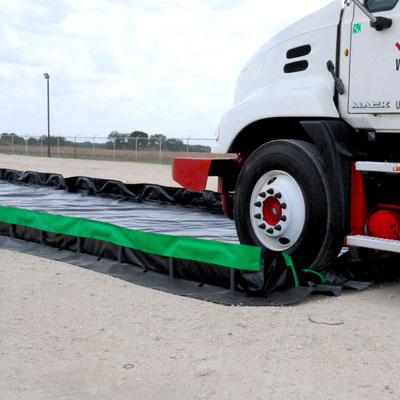

tanker truck spill containment berm
tanker truck spill containment berm
Next Prev
tanker truck spill containment bermtanker truck spill containment berm drive in/out spill containment berm drive in out containment berm drive in out containment berms
  Made In The USA

Quick Overview

  • Ideal containment systems for tankers, IBCs and other large vehicles, containers or equipment
  • 12" high entry/exit containment walls with flexible hinges for drive-in/out vehicle access
  • Economical and convenient spill berm design requires minimal assembly
  • Constructed with rugged and chemical resistant Copolymer-2000 materials
  • Portable spill berms come in three sizes up to 66' with 5385-7405 gallon capacity
  • Helps comply with EPA and SPCC regulations
  • Made in, and ships from, the United States

From $

Product Information

Capture leaks or drips from tanker trucks and prevent pollution with an Affordable Drive In/Out Spill Containment Berm. Convenient and economical, these secondary spill containment berms require minimal assembly. The 12" high end walls have a hinge stake design that allows vehicles to drive over and then snaps back into place for secure spill containment. Quick-erect PVC frames support the berm's longer sidewalls and also manually lower, if necessary.

Truck spill prevention berms are great solution to avoid ground contamination and comply with SPCC and EPA containment regulations. Use these drive over containment wall units anywhere trucks operate, such as construction sites or industrial facilities. Their low profile design is perfect for vehicle equipment maintenance as well as secondary containment when transporting storage tanks, overpacks, and other large containers.

Our portable, re-usable truck spill containment units are made from heavy-duty, chemical resistant Copolymer-2000 and come in three lengths up to 66' as well as custom sizes.

Heavy Duty Materials

These berms are fabricated with rugged Copolymer-2000 material which is both strong and flexible, so highly rated for use with heavy equipment or vehicles like tanker trucks. This durable material is safe to use on a variety of surfaces including asphalt, soil, sand or gravel.

The drive in/out end walls use green urethane stakes for strong yet flexible support and structure. Perimeter sidewalls feature a durable PVC frame construction with swivel feet for quick and easy assembly.

Copolymer-2000 provides excellent chemical compatibility with oils, gasoline, water and other hazardous materials. For additional details, please see our guide below under Technical Information.

Using Track Belts (sold separately) is a good option to protect your spill berm investment and minimize wear from truck tires or heavy vehicle traffic on the containment system. An optional Ground Tarp below the berm will also provide additional protection from punctures or damage by rough terrain or gravel surfaces.

Affordable & Convenient Spill Response

tanker truck spill containment bermUse these containment systems for secondary spills wherever trucks transfer hazardous materials or liquids with a potential for leaks. Secondary containment berms are ideal for short-term or daily use whenever tankers or machinery operate and park. Their convenient design negates the need for other emergency response equipment like pop up pools or containment trays if a spill occurs.

This innovative hybrid side/end wall design is a more affordable option to other no-assembly units such as foam wall berms. However, they still offer the same convenience of true drive-in and drive-out spill containment without the need for manual intervention. Once the units are in position and the initial set up is complete, these spill containment products are perfect for ongoing operations or sites where vehicles remain in place for several days.

Minimal Assembly

This drive in/drive out containment berm does not require manual adjustment of struts or supports; operators can remain in the truck to position either the vehicle itself or equipment inside the berm. Each end wall features flexible stakes made of urethane. These stakes provide both structure to the berm yet also allow vehicles to drive straight over the wall. Once wheel traffic clears, the stake walls automatically revert back into the upright position.

The longer sides of these spill control units use quick-build PVC frames for support. You may also lower these 12" high collapsible walls by hand to more easily maneuver equipment within the berm, if necessary. To collapse the side walls, simply swivel each of the frame "feet" by 90 degrees so they lay flat on the ground (when upright, the feet are perpendicular to the sidewalls).

Berms may be fitted with drain plugs (sold separately) to assist emptying them. After spill prevention use, empty or sweep the berm so it is clean, dry, and free from any contaminates. Fold and store the units in a suitable environment such as a safety cabinet so it is ready for future use to prevent oil spills or as emergency response.

Initial Set Up and Deployment

  1. Ensure the ground surface where you wish to use the berm is clean from any debris or sharp materials.
  2. Position the berm in your desired location then unfold the unit. Using an optional ground tarp under the berm may help prevent punctures or damage.
  3. Lift the longer sidewalls to expose the PVC frame legs then swivel each of the feet 90 degrees so they face into the berm.
  4. On the shorter ends, insert green urethane stakes through holes in the bottom of the berm's base plates and into the pockets at the top of the wall.
  5. Ensure walls and stakes are firmly seated, place optional Track Belts inside the berm, and the unit is ready for use.

Protect Your Investment. Berm Protection Ground Tarps and Track Belts Available here

Technical Information

Copolymer 2000: 25 oz. / sq. yard. Suitable for operating at temperatures of 160°F maximum and -25°F minimum. Sidewall PVC frame and flexible urethane end stakes. See our Containment Berm Chemical Compatibility Guide (PDF) for more information.

Compliance Information

CFR 264.175.

Ordering & Shipping

Custom sizes available
Please contact us by email or call toll free (800) 869-9633 if you have any custom order or spill containment product shipping questions. We are also happy to discuss any truck containment or spill kit requirements you may have, such as storm drain containment pads, spill decks, containment pallets and track pans.

Note: Our Truck Spill Containment Berms ship LTL (less than load). We will email you to confirm the exact shipping costs after receipt of your order.

Product Demonstration Video



Pricing and Order

Item Description Our Price Quantity
A8505U
Affordable Drive In/Out Containment Berm 12x60'
A8505U
Affordable Drive In/Out Containment Berm 12x60'

Affordable Drive In/Out Containment Berm Dimensions: 12 feet wide x 60 feet long x 12 inches high. Copolymer-2000. Color: Black. Capacity: 5385 gallons. Weight 297 lbs.

$5,130.97
Others Charge
$5986.00
$5,130.97
Others Charge
$5986.00
Quantity
A8506U
Affordable Drive In/Out Containment Berm 15x50'
A8506U
Affordable Drive In/Out Containment Berm 15x50'

Affordable Drive In/Out Containment Berm Dimensions: 15 feet wide x 50 feet long x 12 inches high. Copolymer-2000. Color: Black. Capacity: 5610 gallons. Weight 290 lbs.

$5,106.97
Others Charge
$5958.00
$5,106.97
Others Charge
$5958.00
Quantity
A8507U
Affordable Drive In/Out Containment Berm 15x66'
A8507U
Affordable Drive In/Out Containment Berm 15x66'

Affordable Drive In/Out Containment Berm Dimensions: 15 feet wide x 66 feet long x 12 inches high. Copolymer-2000. Color: Black. Capacity: 7405 gallons. Weight 369 lbs.

$6,344.97
Others Charge
$7403.00
$6,344.97
Others Charge
$7403.00
Quantity
