Railroad Track Pans

Use modular design track pans for cost-effective railcar spill containment

railroad track pans composite 20ft model
railroad track pans composite 20ft model
Next Prev
railroad track pans composite 20ft modelrailroad track pans (20ft composite model)railroad spill containment (composite model)optional railroad track pan gasket installrail track pan grating (composite model)railroad spill containment (9ft poly system)locomotive car track pans (poly model)railroad track pan stormwater feature (poly)poly track pan bulkhead fitting connectorrailroad track pan system (polyethylene)rail car spill track pan (poly model)
  Made In The USA

Quick Overview

  • Two styles of modular design railroad spill containment pan kits
  • Modular pans connect at any length to share containment capacity
  • Create sealed systems with center and side track pans
  • Non-skid, non-porous, corrosion resistant materials and parts
  • Optional polyethylene decking grates for center and side pans
  • Ideal spill containment system for locomotive maintenance
  • Deploy as a spill control system for potential tanker car leaks
  • Easy-to-install and suitable for long-term service in any rail area
  • SPCC compliant - Pandrol compatible

From $401.97

Product Information

Avoid fines and the costly cleanup of harsh chemical rail spills with our two styles of Railroad Track Pans. These modular railroad spill containment systems are available with side and center track pans. Choose either the 20-foot pan length model, or, our unique stormwater feature drain and pan cover units.

Use low maintenance yet rugged track pans to capture hazardous spills from railroad tanker cars. They are ideal for containing small drips in locomotive maintenance facilities, fueling stations, as well as large rail car leaks. Systems are suitable for installation at industrial rail sidings, even where pan drills, bolts or spikes are present. Unlike carbon steel track pans, these units will not rust or corrode

Modular - easy to install

Forklifts or heavy equipment are not necessary for installation and to create a custom length pan set up. Our modular railroad track pan systems can accommodate 35-60 foot railroad tanker cars as well as 60-foot locomotives.

Install any pan configuration combination with center and none, one, or two sides. Refer to our two installation guides below for additional set up information.

Optional below-grade piping

For locations where spills may exceed containment capacity, optional below-grade piping installation will route fluids to holding tanks or containment sites. Manifold installation requires minimal ballast removal and allows one drain field tie-in for each set of pans. Each manifold has a flushing port to remove obstructions like sludge or blockages.

Two railroad spill solution system options

Large capacity composite model

A corrosion resistant fiberglass composite construction ensures these pans are high strength and non-porous. UV-resistant, this composite material offers excellent resistance to hydrocarbons. Connectable center and side pans measure 20 feet long and form custom-length railroad spill containment solutions. They are Pandrol compatible and have a low profile of less than 5 inches high. The pans' top surfaces offer good slip-resistance.

The innovative track pan design includes a number of additional upgrades for a complete sealed pan system. Optional 3in flow-through ports share fluid between pans to increase containment capacity. Secure pans together using a two-part adhesive - no field welding or bulk-head connections are necessary.

Optional seam covers and a rail-side gasket sealing system help prevent seeping leaks. A drainage manifold may be set up to pipe railcar spills away to oil/water separators or holding ponds.

Install the pallet-style grating package, with slip-resistant surfaces, for safer foot traffic. These components use polyethylene construction for durability and chemical spill resistance.

In short-term applications, composite units create suitable containment areas for a variety of chemical spill materials. See our chemical compatibility guide below for more details, including temperature ratings.

Polyethylene model with stormwater feature

Featuring an all polyethylene construction, these smaller center and side pans are lightweight and easy to move around. Assemble the modular 53.5" pans into any length containment area. They offer an economical, low maintenance, and easy set up railroad spill solution.

Join pans end to end with with the included bulkhead fittings (one fitting is necessary for side pans and two for center pans). Center and side track pans have pipe fitting locator molds at the lowest point, for sufficient spacing options around rail ties. Drill out recess molds to accommodate 3" diameter bulkhead fittings. Connect to a drainage manifold to channel large spills into holding tanks or water separators.

Insert closed-cell polyethylene gaskets between the rails and pans to create a sealed system. Gaskets help seal gaps and prevent spills flowing onto the ballast beneath the pans.

Top surfaces of the pans, grates, and covers offer good traction for slip resistance, even when wet or oily. The track pan with grates also create structural integrity to allow safer foot and vehicle traffic. Note: vehicle weight limits depend on the bedding material strength below the rail spill control system.

The unique stormwater feature design eliminates rain water from "pooling" on top of the center pan covers. The optional covers also keep rainwater out of the pans, by channeling it into the ballast between rail tracks. The lightweight covers mechanically lock into the polyethylene decking to provide wind resistance. Covers prevent debris collecting inside pans and remain in place until rail cars arrive for loading/offloading.

These rugged track pans are purpose-built to function in temperatures from -40°F to +140°F and to withstand harsh chemicals. A UV-inhibitor in the polyethylene resin helps resists degrading effects from sunlight, meaning these pans have an approximate 20-30 year service life.

Installation is suitable for rail weights greater than 65lbs. The modular system design allows pans to follow curved tracks of up to 12 degrees without any customization.

Ideal for effective stormwater management, our polyethylene pan product line also offers consistent chemical compatibility. See our guide below for chemical resistance details, including a broad range of acids, caustics, corrosives, solvent, oils, and diesel fuel.



Technical Information

Fiberglass composite model

Polyethylene model

WARNING: This product (Rail Clips: Part#7230, Adhesive Dispenser: Part#7233 and Rebar Fasteners: Part#9584) can expose you to chemicals including nickel, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

WARNING: This product (Adhesive: Part#7232) can expose you to chemicals including Carbon Tetrachloride, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.


Compliance Information

  • Meets SPCC and EPA Stormwater Management Regulations
  • 40 CFR 264.175
  • New York State Chemical Bulk Storage Regulation Section 599.17c — Secondary Containment for Transfer Stations.
  • See Federal Regulatory Compliance Summaries



Ordering and Shipping

Our composite ultra track pans ship from Jacksonville, Florida. They are too large for LTL shipments and require side-load transport on a dedicated flatbed trailer. The optional track pan cover grates ship from Ohio.

We box the polyethylene side and center track pans separately to protect them during shipment. The units stack on wooden shipping pallets via LTL or full truckload shipments, depending on the order size.

Please contact us by email or call toll free (800) 869-9633 if you have any questions about railroad spill containment solutions and containment berms.

Pricing and Order

Item Description Our Price Quantity
20ft Pan Composite Model (Optional Decking, No Covers)
A7200U
railroad track pan center pan A7200U
A7200U
railroad track pan center pan A7200U

Railroad Track PanCenter Pan
Fiberglass composite.
Dimensions: 255"L x 57-1/4"W x 4-1/2"H.
Capacity: 209 gallons (191 gallons with grating).
Weight: 177 lbs.

$2,613.97 $2,613.97
Quantity
A7210U
railroad track pan side pan A7210U
A7210U
railroad track pan side pan A7210U

Railroad Track PanSide Pan
Fiberglass composite.
Dimensions: 255"L x 36"W x 4-1/2"H.
Capacity: 98 gallons (89 gallons with grating).
Weight: 100 lbs.

$1,792.97 $1,792.97
Quantity
A7220U
railroad trackpan drainage manifold
A7220U
railroad trackpan drainage manifold

Railroad Track PanCenter & Sides Drain Manifold
Weight: 27.5 lbs.

$429.97 $429.97
Quantity
A7223U
railroad trackpan drainage manifold
A7223U
railroad trackpan drainage manifold

Railroad Track PanCenter Only Drain Manifold
Weight: 21 lbs.

$223.97 $223.97
Quantity
A7232U
railroad track pan adhesive A7232U
A7232U
railroad track pan adhesive A7232U

Railroad Track PanAdhesive
Weight: 1.5 lbs.

$113.97 $113.97
Quantity
A420U
railroad track pan optional grating
A420U
railroad track pan optional grating

Railroad Track PanPolyethylene Grating
Dimensions: 48"L x 24"W x 2"H.
Weight: 20 lbs.

$127.97 $127.97
Quantity
A7230U
railroad track pan side pan rail clip A7230U
A7230U
railroad track pan side pan rail clip A7230U

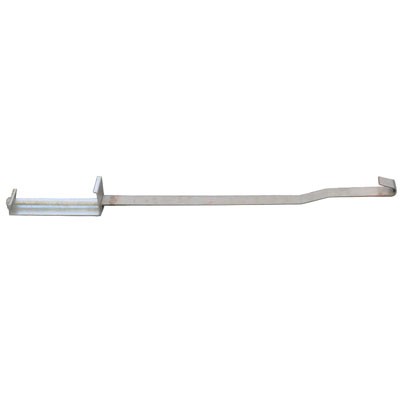

Railroad Track PanSide Pan Rail Clip
Weight: 5 lbs.

$98.97 $98.97
Quantity
A7225U
railroad track pan gasket
A7225U
railroad track pan gasket

Railroad Track PanClosed-cell Polyethylene Gasket
Weight: 4 lbs.

$79.97 $79.97
Quantity
A7227U
railroad track pan seam cover A7227U
A7227U
railroad track pan seam cover A7227U

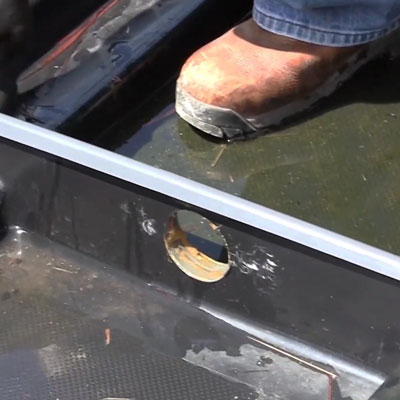

Railroad Track PanCenter Pan Seam Cover
Weight: 1 lbs.

$49.97 $49.97
Quantity
A7228U
railroad track pan seam cover A7228U
A7228U
railroad track pan seam cover A7228U

Railroad Track PanSide Pan Seam Cover
Weight: 1 lbs.

$47.97 $47.97
Quantity
A7235U
railroad track pan grate support pedestal A7235U
A7235U
railroad track pan grate support pedestal A7235U

Railroad Track PanGrating Support Pedestal
Weight: 0.2 lbs.

$2.97 $2.97
Quantity
Polyethylene Model (Includes Decking, Optional Covers)
A9596U
railroad track pan 9ft system with covers A9596U
A9596U
railroad track pan 9ft system with covers A9596U

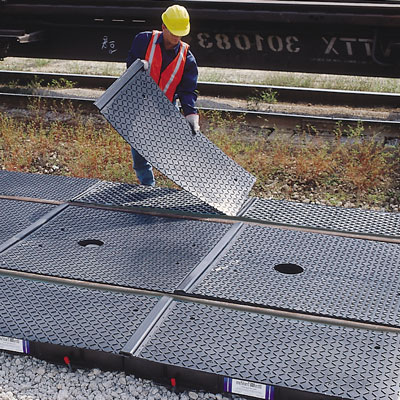

Railroad Track Pan9ft Polyethylene System with Covers
Includes: two (2) Center Pans with Covers; four (4) Side Pans with Covers
Weight: 790 lbs.

$4,836.97 $4,836.97
Quantity
A9595U
railroad track pan 9ft system no covers A9595U
A9595U
railroad track pan 9ft system no covers A9595U

Railroad Track Pan9ft Polyethylene System
Includes: two (2) Center Pans; four (4) Side Pans.
Weight: 610 lbs.

$3,315.97 $3,315.97
Quantity
A9566U
poly railroad track pan center pan A9566U
A9566U
poly railroad track pan center pan A9566U

Railroad Track PanPolyethylene Center Pan
Dimensions: 54-1/4"L x 55-3/4"W x 6"H.
Capacity: 18 gallons (30 gallons with grating).
Weight: 112 lbs.

$790.97 $790.97
Quantity
A9576U
poly railroad track pan side pan A9576U
A9576U
poly railroad track pan side pan A9576U

Railroad Track PanPolyethylene Side Pan
Dimensions: 54-1/4"L x 55-3/4"W x 6"H.
Capacity: 19 gallons (25 gallons with grating).
Weight: 58 lbs.

$401.97 $401.97
Quantity
A9580U
railroad track pan center pan cover A9580U
A9580U
railroad track pan center pan cover A9580U

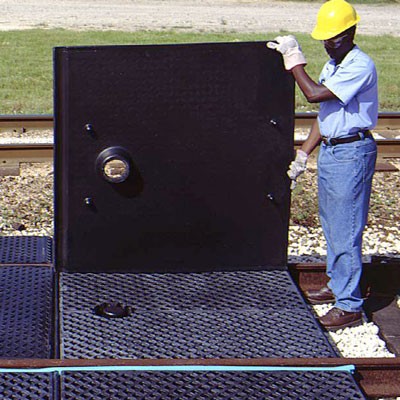

Railroad Track PanCenter Pan Polyethylene Cover
Dimensions: 55"L x 52-1/2"W.
Weight: 24 lbs.

$373.97 $373.97
Quantity
A9581U
railroad track pan side pan cover A9581U
A9581U
railroad track pan side pan cover A9581U

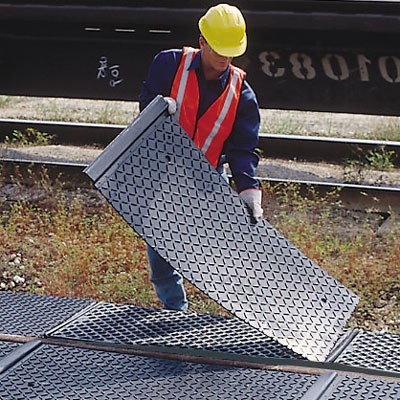

Railroad Track PanSide Pan Polyethylene Cover
Dimensions: 55"L x 28-1/4"W.
Weight: 11 lbs.

$187.97 $187.97
Quantity
A9571U
poly railroad track pan center pan left grate A9571U
A9571U
poly railroad track pan center pan left grate A9571U

Railroad Track PanPolyethylene Center Pan Left Grate
Weight: 33 lbs.

$112.97 $112.97
Quantity
A9572U
poly railroad center track pan right grate A9572U
A9572U
poly railroad center track pan right grate A9572U

Railroad Track PanPolyethylene Center Pan Right Grate
Weight: 33 lbs.

$112.97 $112.97
Quantity
A9573U
poly railroad track pan side pan grate
A9573U
poly railroad track pan side pan grate

Railroad Track PanPolyethylene Side Pan Grate
Weight: 35 lbs.

$106.97 $106.97
Quantity
A9584U
railroad track pan rebar fasteners A9584U
A9584U
railroad track pan rebar fasteners A9584U

Railroad Track PanRebar Fasteners with Protective Caps
20-Pack
Weight: 30 lbs.

$79.97 $79.97
Quantity
A9559U
poly railroad track pan drain fitting A9559U
A9559U
poly railroad track pan drain fitting A9559U

Railroad Track Pan3" Dia. Bulkhead Drain Fitting
For below-grade piping.
Weight: 3 lbs.

$67.97 $67.97
Quantity
A9569U
polyethylene railroad track pan gasket A9569U
A9569U
polyethylene railroad track pan gasket A9569U

Railroad Track PanRail Gasket
Closed-Cell Polyethylene.
Weight: 2 lbs.

$17.97 $17.97
Quantity
